SOLUTIONS

 Application Scenarios Of Expansion Vessel Console

The primary application scenarios of expansion vessel console revolve around their functional requirements, which involve securing, supporting, or adjusting the position of expansion tanks to ensure safe and stable system operation. Our expansion vessel consoles are used for the tank which are less than 25 liters in general. Below are their typical use cases:
HVAC Systems

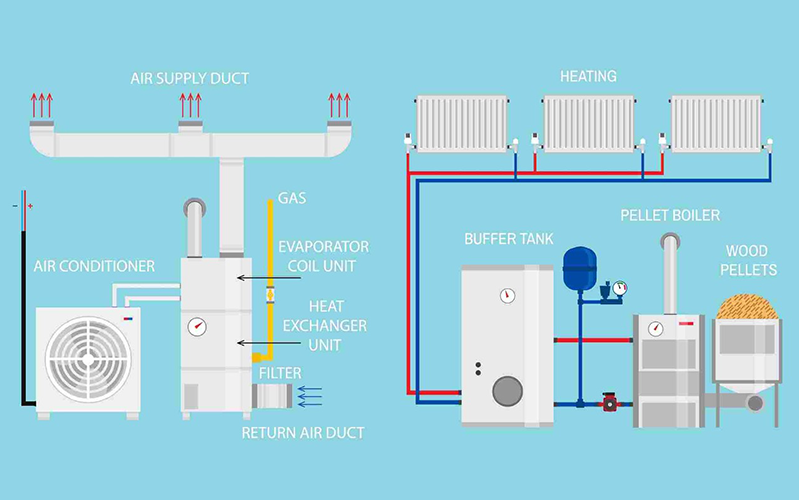

1. HVAC Systems (Heating, Ventilation, and Air Conditioning)

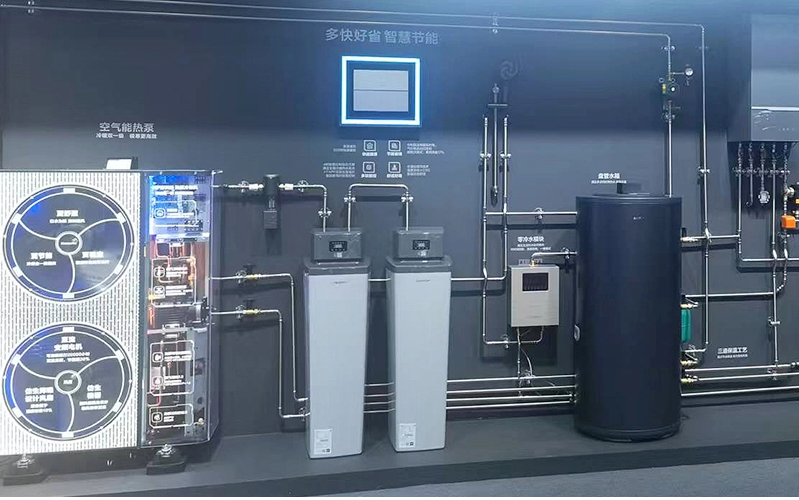

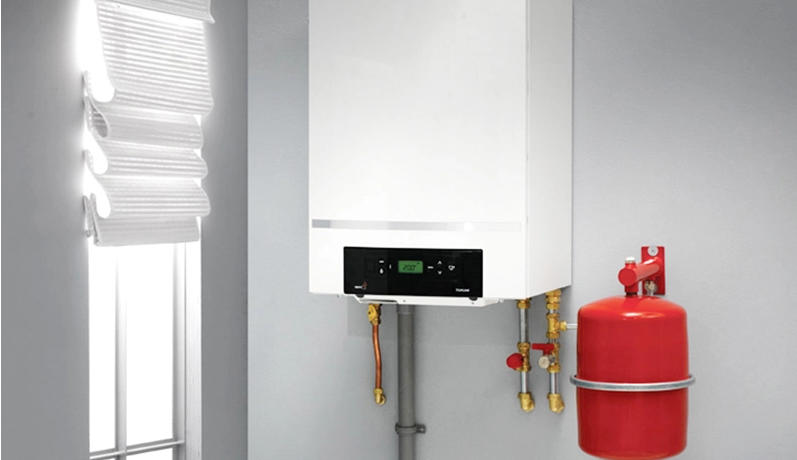

Application Scenario: In central air conditioning, underfloor heating, and other water circulation systems, expansion tanks absorb water volume fluctuations caused by temperature changes. Expansion vessel consoles fix the tank in place, preventing stress or vibration on pipelines.
Function: Prevents tank deformation due to gravity or pipeline stress, ensuring long-term stability.
Solar Water Heating Systems

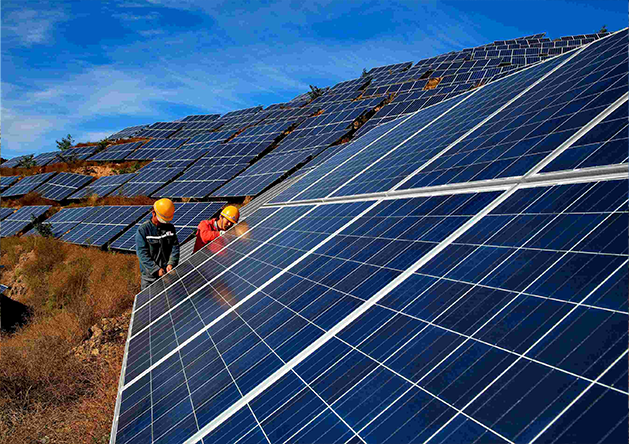

2. Solar Water Heating Systems

Scenario: In closed-loop solar thermal systems, expansion tanks mitigate
thermal expansion. Consoles are installed on rooftops or outdoors, requiring weather proofing.
Key Factors: Outdoor durability and UV resistance.




Water Supply and Pressure Boosting Systems

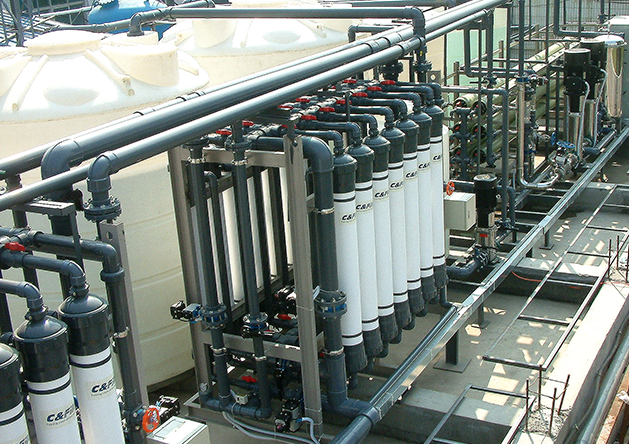

3. Water Supply and Pressure Boosting Systems

Scenario: In high-rise buildings or secondary water supply systems, expansion tanks balance water pressure fluctuations. Expansion tank consoles secure the tank to pump rooms, walls, or frames to save space.
Requirements: Corrosion-resistant materials (e.g., galvanized steel) for humid environments, ANSI 304 or ANSI 316 stainless steels are required mostly.

 The Following Are key Considerations For Expansion Vessel Console Selection

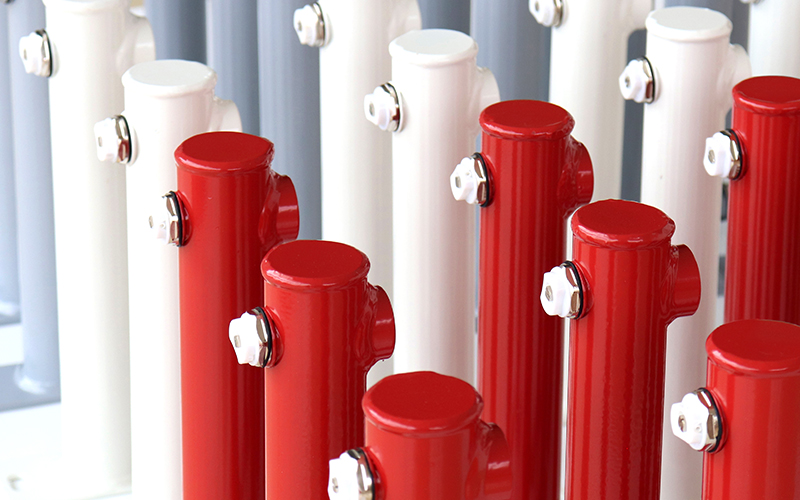

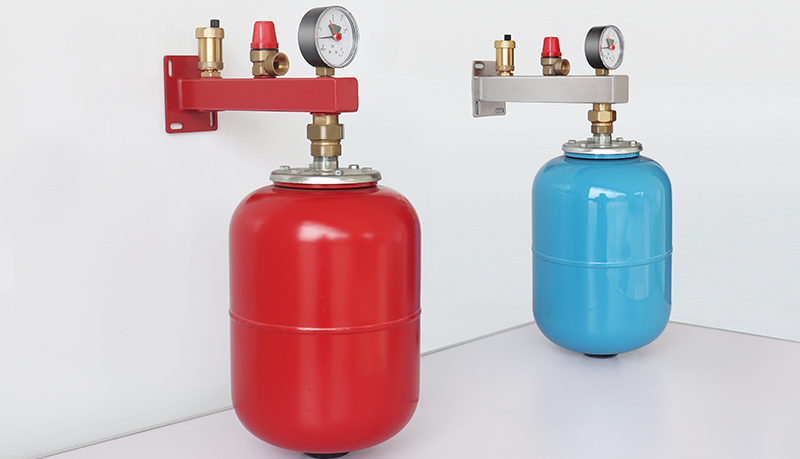

Expansion Vessel Console

 Material:

Choose galvanized steel, stainless steel, or powder-coated options based on the environment. We offer red expansion vessel console, White expansion vessel console, gray expansion vessel console, Galvanized expansion vessel console, Wall-mounted expansion vessel console, Stainless steel expansion vessel console, Adjustable expansion vessel console, Universal expansion vessel console, Corrosion-resistant expansion vessel console.


 Load Capacity:

Match the weight of the tank and its contents (e.g., water).


 Mounting Method:

Wall-mounted, or suspended, depending on space constraints.

 Maintenance Accessibility:

Allow sufficient space for inspection and servicing.By selecting appropriate expansion vessel console, the lifespan of expansion tanks can be extended while enhancing system safety, particularly in high-vibration, high-temperature, or corrosive environments.


 Application:

Generally, the expansion tank consoles are in use for Boilers, heating pumps in HVAC and solar systems; they also can be classified as Industrial expansion vessel console, Commercial expansion vessel console and Residential heating vessel console per final area.
expansion tank consoles

PRODUCT APPLICATION ANALYSIS

Expansion Tanks

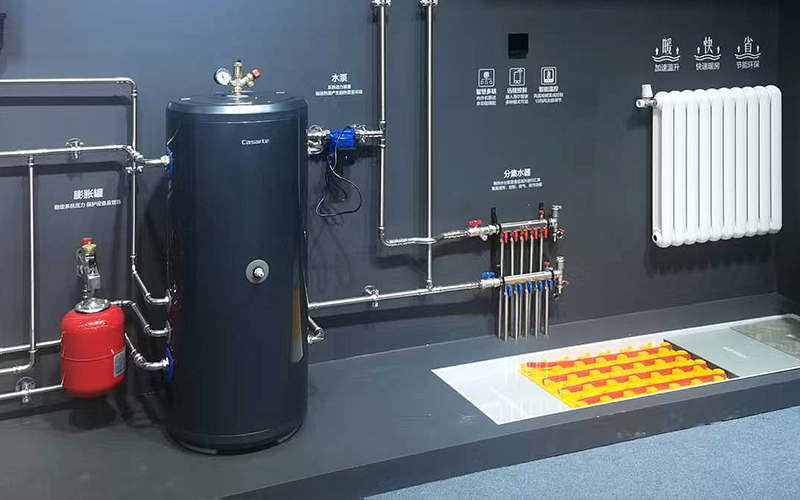

Expansion tanks (also known as expansion vessels or pressure buffer tanks) play a critical role in heating, air conditioning, water supply, and industrial fluid systems by balancing pressure, absorbing water hammer, and buffering volume changes within the system. To ensure stable operation, they must be securely fixed with appropriate mounting brackets. The mounting brackets for expansion tanks are essential components for both the stable operation and safety of the equipment. Proper bracket design helps prevent damage caused by vibration, displacement, or stress concentration.
Expansion Tanks
expansion vessels
Carbon Steel Integrated Water Distribution
The carbon steel integrated water distribution, mixing, and pressure coupling unit is a pipeline device that combines water distribution, mixing, and pressure stabilization functions. It is commonly used in HVAC systems, central heating, and industrial water circulation systems to improve efficiency and simplify pipeline design
Carbon Steel Integrated Water Distribution
Carbon Steel Integrated Water Distribution
