Does an expansion vessel need to be upright? Manufacturers usually prefer an upright position, but horizontal installation is possible when proper support is used and instructions are followed. Adequate support prevents common issues, such as waterlogging or stress on the pipework. Homeowners and DIYers should always check manufacturer manuals and use the correct mounting hardware for safety.
Orientation | Common Issues |
|---|---|
Vertical/Downward | Preferred by manufacturers; concerns about support when installed sideways. |
Sideways | Can work but may lead to waterlogging; requires adequate support to prevent snapping off. |
Upside Down | Not generally recommended; can create a mess when changing a waterlogged tank. |
Manufacturers prefer expansion vessels to be installed upright for optimal performance and easier maintenance.
Horizontal installation is possible but requires proper support brackets to prevent issues like waterlogging and stress on pipework.
Always consult the manufacturer's manual for specific installation guidelines and recommended mounting hardware.
Correct orientation of the expansion vessel helps maintain stable pressure and reduces wear on internal components.
Regularly inspect the vessel and mounting hardware to catch signs of wear, leaks, or instability early.
Consider space availability and maintenance access when deciding on the vessel's orientation.
Using the right support bracket is crucial for both upright and horizontal installations to ensure safety and reliability.
If unsure about installation, consult a professional to avoid costly mistakes and ensure compliance with safety standards.
Manufacturers set clear standards for expansion vessel orientation. Most recommend upright installation, but horizontal mounting is allowed when proper support brackets are used. The question, does an expansion vessel need to be upright?, depends on the vessel's design and the manufacturer's instructions. Upright positioning ensures optimal performance and easier maintenance. Horizontal installation requires additional support to prevent stress cracks and maintain warranty coverage.
The air valve must remain accessible and positioned correctly. In upright installations, the valve sits at the top, allowing for easy pressure checks and adjustments. Horizontal orientation may place the valve on the side, which can complicate servicing. Manufacturers specify the valve's location to prevent air pocket instability and ensure reliable operation.
The diaphragm or bladder inside the vessel separates air from water. Upright installation keeps the diaphragm balanced, reducing wear and tear. Horizontal mounting can cause uneven pressure distribution, which may affect the vessel's lifespan. Manufacturers highlight the importance of correct orientation to preserve the internal components and prevent leaks.
Manufacturers provide detailed instructions for installation. Reading the manual answers the question, does an expansion vessel need to be upright?, and clarifies the requirements for each orientation. Manuals include diagrams, recommended support brackets, and step-by-step guidance.
Locate the installation section in the manual. Look for diagrams showing upright and horizontal positions. Manufacturers often list approved bracket types and mounting methods. Proper installation ensures the vessel operates safely and efficiently.
Tip: Always use the recommended bracket for horizontal mounting. This prevents stress on the vessel and pipework.
Warranty coverage depends on following manufacturer guidelines. Incorrect installation or improper orientation can void the warranty and create safety risks. Manufacturers require the use of approved brackets and correct positioning to protect both the vessel and the heating system.
Factor | Vertical Installation | Horizontal Installation |
|---|---|---|
Space Requirements | Preferred in areas with limited floor space | Suitable for areas with ample ground space |
Maintenance Access | Easier access for servicing | Requires more space for maintenance access |
Installation Considerations | Must not be laid on its side | Requires saddle support to avoid stress cracks |
Common Applications | Used in larger systems for better ventilation | Often used in pre-packaged booster sets |
Space availability: Vertical vessels are ideal for limited floor space, while horizontal vessels suit areas with lower ceiling clearance.
Operational needs: Horizontal vessels allow for easier access for maintenance and loading tasks.
Material handling: Consider the type of materials processed, as some may have specific vessel requirements.
Expansion vessel orientation directly impacts system pressure regulation. Vertical installation maximizes floor space and improves agitation, which leads to uniform fluid distribution. This configuration enhances separation efficiency, especially when a high gas-to-liquid ratio is required. Engineers note that upright vessels aid in efficient removal of immiscible liquid phases, supporting stable pressure control throughout the heating cycle.
Horizontal installation offers better accessibility for maintenance and cleaning. This orientation suits applications where low fluid velocity is necessary to minimize phase entrainment. However, horizontal vessels may not provide the same level of agitation or separation efficiency as vertical models.
Orientation Type | Advantages |
|---|---|
Vertical | Maximizes floor space; improves agitation; enhances separation efficiency; aids removal of immiscible liquids |
Horizontal | Better accessibility for maintenance; suitable for low fluid velocity applications |
Note: Proper bracket support is essential for both orientations to maintain consistent pressure and prevent vessel movement.
Air pocket stability is crucial for expansion vessel performance. In vertical installations, the air pocket remains at the top, allowing the diaphragm or bladder to function efficiently. This setup reduces the risk of air mixing with water, which can cause pressure fluctuations.
Horizontal vessels may experience air pocket migration along the length of the tank. This movement can lead to uneven pressure distribution and potential instability. Manufacturers recommend monitoring air pocket location during maintenance, especially in horizontal setups.
Vertical orientation: Maintains stable air pocket position, supports reliable pressure control.
Horizontal orientation: Requires careful monitoring to prevent air migration and pressure imbalance.
Expansion vessel longevity depends on proper orientation and support. Vertical installation reduces stress on the diaphragm and pipework, minimizing the risk of leaks. The vessel remains balanced, and internal components experience less wear.
Horizontal mounting can increase the risk of leaks if not supported correctly. Stress cracks may develop at connection points, especially if the vessel sags or shifts. Using a robust bracket, such as the Easywell Expansion Tank Bracket Series, prevents excessive movement and protects against leaks.
Tip: Inspect mounting hardware regularly to ensure the vessel remains secure and leak-free.
Maintenance requirements vary by orientation. Vertical vessels offer easier access to the air valve and internal components, simplifying routine checks and servicing. Technicians can quickly assess pressure levels and perform repairs.
Horizontal vessels require more space for maintenance access. Cleaning and servicing may take longer, especially if the vessel is installed in a confined area. Proper bracket selection, like the Easywell Bowed or Round Expansion Tank Bracket, improves accessibility and reduces maintenance time.
Vertical installation: Streamlines maintenance, reduces downtime.
Horizontal installation: Demands careful planning for access and support.
Regular maintenance extends vessel lifespan and ensures optimal performance in any orientation.
Proper planning is essential when you install an expansion tank. The available space determines the orientation and the mounting method. In many homes, vertical installation is preferred because it saves floor space and allows for easier access to the air valve. However, some boiler rooms or utility closets require the vessel to be mounted horizontal to the floor due to ceiling height restrictions or limited wall space.
The length of pipework affects both performance and maintenance. Shorter pipe runs minimize pressure loss and reduce the risk of leaks. When you install an expansion tank, position it as close to the boiler or water heater as possible. This placement ensures efficient operation and simplifies future servicing. Longer pipework may be necessary in tight spaces, but it can complicate installation and increase the chance of stress on joints.
Accessibility is a key factor in expansion tank installation. Technicians must reach the air valve and connections for routine maintenance. Vertical mounting often provides better access, but horizontal installations can be practical in certain layouts. Always ensure there is enough clearance around the vessel for inspection and repairs. When you install an expansion tank, plan for future maintenance by leaving space for tools and movement.
Secure mounting prevents stress and leaks. Using the right bracket is critical, especially when the vessel is installed horizontal to the floor. The Easywell Expansion Tank Bracket Series offers robust support for both upright and horizontal installations. These brackets feature corrosion-resistant materials, high structural strength, and vibration control, making them ideal for residential and commercial systems.

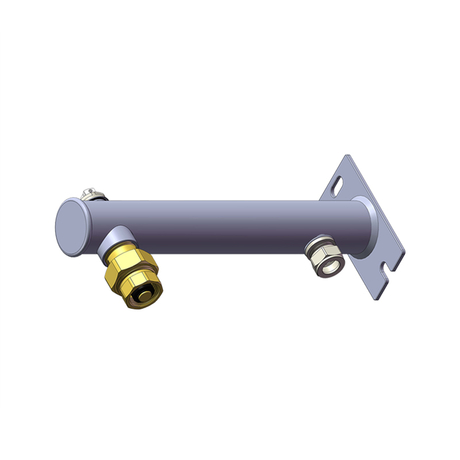

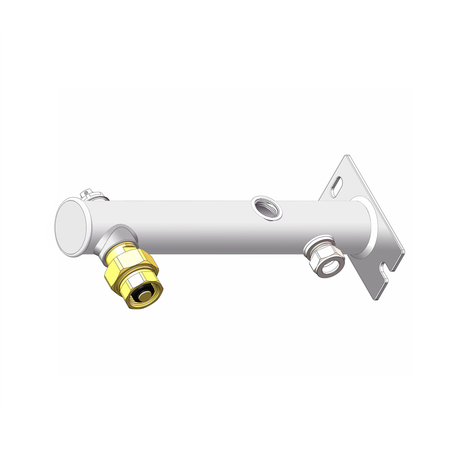

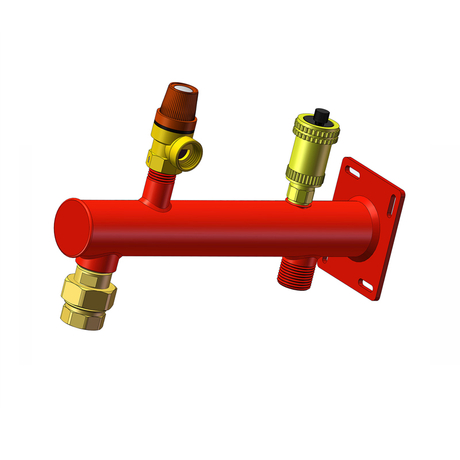

The Easywell Expansion Tank Bracket Series stands out for its reliability and safety. The Bowed, Round, and Square models accommodate various tank sizes and environments. Each bracket ensures the vessel remains stable, even in wet or corrosive conditions. The adjustable clamps and reinforced corners simplify installation and maintenance.
Feature | Easywell Expansion Tank Bracket Series | Other Mounting Solutions |
|---|---|---|
Yes | Varies | |
Structural Strength | High | Varies |
Vibration Control | Yes | Limited |
Long-term Reliability | Yes | Varies |
When you install an expansion tank, preventing stress on the vessel and pipework is vital. Proper bracket support distributes weight evenly and absorbs vibrations. This reduces the risk of leaks and extends the lifespan of the expansion tank. The Easywell Expansion Tank Bracket Series provides dependable support, ensuring the vessel remains secure in any orientation. Always follow manufacturer guidelines and use approved brackets for safe installation.
Tip: Inspect brackets and mounting hardware regularly. Early detection of wear or corrosion prevents costly repairs and system downtime.
Incorrect orientation of an expansion vessel can significantly impact system efficiency. When the vessel is not installed upright, the air pocket may shift, causing inconsistent pressure regulation. This instability can lead to frequent cycling of the boiler or water heater. The system may struggle to maintain optimal pressure, resulting in higher energy consumption and reduced heating performance. Homeowners may notice longer heat-up times or fluctuating water temperatures. These symptoms often indicate that the vessel is not functioning as intended.
Symptom | Possible Cause | Impact on System |
|---|---|---|
Fluctuating pressure | Air pocket instability | Reduced efficiency |
Frequent cycling | Improper vessel orientation | Higher energy usage |
Uneven heating | Diaphragm wear | Poor performance |
Improper orientation accelerates wear on internal components. The diaphragm or bladder inside the vessel may experience uneven stress, leading to premature failure. Pipework connected to the vessel can also suffer from increased vibration and movement. Over time, this can cause leaks at connection points and reduce the lifespan of the entire heating system. Maintenance costs may rise as technicians need to replace worn parts more frequently. Consistent upright installation helps distribute forces evenly, protecting both the vessel and the surrounding infrastructure.
Detecting issues early prevents costly repairs. Several signs suggest that an expansion vessel has been installed incorrectly:
Unusual noises, such as banging or vibrating, coming from the vessel or pipework.
Visible sagging or movement of the tank, especially in horizontal installations without proper bracket support.
Difficulty accessing the air valve for pressure checks or adjustments.
Persistent leaks at connection points or mounting brackets.
Fluctuating system pressure and inconsistent heating performance.
Note: Regular inspection of the vessel and mounting hardware can reveal early signs of improper installation.
Manufacturers recommend a systematic approach to correcting orientation issues. Follow these steps to restore proper function:
Securely mount the expansion tank in the correct position. Attach it to a stable pipe or bracket to prevent movement.
Check the orientation of the vessel. Install it vertically whenever possible to ensure optimal performance.
If the tank appears loose or unstable, tighten all connections and fasten it securely. This prevents vibration and reduces the risk of leaks.
Proper support brackets, such as those from the Easywell Expansion Tank Bracket Series, provide reliable stability for both upright and horizontal installations. Always consult the manufacturer’s manual before making adjustments. Routine maintenance and careful installation protect your heating system from efficiency loss and premature wear.
Proper preparation ensures a safe and efficient installation. Begin by turning off the power to the water heater. Shut off the cold water supply to prevent accidental flooding. Open a hot water faucet to relieve pressure in the system. This step protects both the installer and the equipment. Use a pressure gauge to check the existing water pressure. Adjust the expansion tank’s air pressure to 5–10 psi above the house water pressure. This adjustment helps maintain system stability.
Apply thread sealant or Teflon tape to the tank’s threaded connection. This creates a watertight seal and prevents leaks. Thread the expansion vessel onto the pipe fitting by hand. Use an adjustable wrench to tighten the connection securely. Attach the vessel to a robust support bracket, such as the Easywell Expansion Tank Bracket Series, to ensure stability in both upright and horizontal positions. Restore the cold water supply and power to the heater. Monitor the installation for leaks over the next 24 to 48 hours. Regular inspection helps identify moisture or pressure issues early.
Tip: Always follow manufacturer guidelines and use the correct bracket for your vessel’s orientation.
A successful installation requires the right tools. Gather the following items before starting:
Adjustable wrench
Pipe cutter
Pipe wrench
Screwdriver set
Teflon tape
Air pressure gauge
Bicycle pump or air compressor
Expansion tank sized for your system
Support bracket or strap
These tools help ensure a secure fit and proper pressure adjustment. Using the correct equipment reduces the risk of leaks and simplifies maintenance.
Some situations require professional expertise. Contact a plumber if you notice leaks in the expansion tank or persistent condensation buildup. Seek help if you experience air blockages affecting hot water in radiators. If the tank itself is leaking, a professional can diagnose and resolve the issue safely.
Common Mistakes | Consequences |
|---|---|
Ignoring Environmental Conditions | Accelerated corrosion, pressure instability |
Installing an Incorrectly Sized Vessel | Frequent pump starts, pressure fluctuations |
Failing to Follow Manufacturer Guidelines | Unsafe operation, inefficient performance |
No Pressure Monitoring Point | Difficult diagnostics, unnoticed pressure issues |
Lack of Commissioning Checks | Early failures due to lack of basic checks |
Note: Avoid common mistakes by sizing the vessel correctly, monitoring pressure, and performing commissioning checks. Professional installation ensures long-term reliability and safety.
Selecting the right orientation for an expansion vessel depends on several practical factors. Both upright and horizontal installations offer distinct advantages and limitations. The following table summarizes key differences in performance and maintenance:
Feature | Vertical Vessels | Horizontal Vessels |
|---|---|---|
Space Efficiency | Ideal for limited horizontal space, takes less floor space | Requires more floor space, better for larger systems |
Maintenance Accessibility | Harder to access for maintenance, fewer access points | Easier access for repairs and inspections |
Stability | Less stable due to smaller base | More stable due to larger base of support |
Capacity | Suitable for smaller systems with lower water demand | Offers larger capacity for higher water demand |
Vertical vessels fit well in compact areas. They minimize floor space usage and suit smaller heating systems. However, maintenance can be challenging due to limited access points. Stability may be lower because of a smaller base. Horizontal vessels require more floor space but provide easier access for repairs. Their larger base improves stability and supports higher water demand.
Tip: Consider the vessel's capacity and maintenance needs before choosing an orientation. Larger systems often benefit from horizontal installation, while smaller setups favor vertical positioning.
Manufacturers recommend a systematic approach when deciding between upright and horizontal expansion vessel installation. The following checklist helps ensure a safe and efficient choice:
Space Availability
Evaluate the installation area. Vertical vessels work best in tight spaces, while horizontal vessels suit larger rooms.
Operational Needs
Determine how often maintenance or inspection will occur. Horizontal vessels offer easier access for routine servicing.
Material Compatibility
Review the compatibility of the vessel with the materials processed in your heating system.
Safety Regulations
Verify compliance with local safety standards and manufacturer guidelines for vessel orientation.
Budget Considerations
Analyze installation and maintenance costs for each vessel type. Horizontal installations may require additional support brackets.
Future Production Projections
Anticipate future system upgrades or increased water demand. Choose a vessel that accommodates growth.
Note: Always consult the manufacturer’s manual and use approved mounting hardware. Proper support, such as the Easywell Expansion Tank Bracket Series, ensures safe installation in any orientation.
Choosing between upright and horizontal installation requires careful assessment of space, operational needs, and long-term goals. Following this checklist helps homeowners and professionals make informed decisions that protect system efficiency and reliability.
To answer does an expansion vessel need to be upright?, consider three key facts: manufacturer guidelines, system performance, and installation factors. Upright installation is preferred for most systems. Horizontal mounting is acceptable only when the manufacturer allows it and proper support brackets are used.
Always follow the manual and use approved mounting hardware.
Consult a professional if you are unsure.
Safety and reliability depend on correct orientation. Ask yourself, does an expansion vessel need to be upright? Check the manual before installation.
Manufacturers allow horizontal installation if you use proper support brackets. Always check the manual for specific instructions. Secure mounting prevents leaks and ensures safe operation.
Upright installation keeps the air valve accessible and maintains diaphragm balance. This orientation reduces wear, simplifies maintenance, and supports stable system pressure.
Incorrect brackets may cause stress, leaks, or vessel movement. Approved brackets, such as the Easywell Expansion Tank Bracket Series, provide reliable support and protect your warranty.
Inspect the vessel and mounting hardware every six months. Look for signs of corrosion, leaks, or movement. Regular checks help prevent costly repairs and maintain system efficiency.
DIY installation is possible with the right tools and instructions. If you notice leaks, pressure issues, or have doubts, consult a professional plumber for safety and compliance.
Yes. Manufacturers require correct orientation and approved brackets. Improper installation can void the warranty and create safety risks. Always follow the manual.
Select a bracket based on your environment and tank size. The Bowed model suits wet areas, the Round model fits standard systems, and the Square model works in compact spaces.
Common signs include fluctuating pressure, unusual noises, sagging tanks, and difficulty accessing the air valve. Address these issues promptly to avoid system damage.
