The Round Expansion Tank Bracket Steel D42 is a high-capacity solution designed for commercial and industrial heating systems, providing robust support for large expansion tanks in boiler rooms, district heating, and industrial processes. Engineered with reinforced steel and anti-vibration features, this bracket ensures stable tank mounting under heavy loads and dynamic conditions.
Industrial-Grade Construction:
42mm tube compatibility (OD 42mm), supports 50-200L expansion tanks with static load capacity 200kg, dynamic load 150kg (vibration 10G, 5-200Hz).
Q345B steel (yield strength 345 MPa) with welded gusset plates, increasing structural rigidity by 40% compared to single-plate brackets.
Corrosion & Heat Resistance:
Hot-dip galvanized (100μm) + silicone heat-resistant coating (200°C continuous), suitable for boiler rooms with radiant heat (≤150°C ambient temperature).
UV-stabilized finish for outdoor installations, passing 2000 hours QUV testing without coating degradation.
Adjustable & Secure Mounting:
Slotted mounting holes (15mm width) allow 30mm horizontal adjustment, with anti-loosening nuts (ISO 7040) ensuring secure installation in high-vibration environments.
Includes steel backing plate (6mm thickness) for concrete wall mounting, distributing load over 200x200mm area to prevent wall damage.
Compliance & Testing:
Certified to EN 1090-1 (structural steel) and ASME B31.1 (power piping), with load test reports available for third-party verification.
Magnetic particle inspection (MPI) on welds, ensuring zero defects in critical load-bearing points.
Ideal for heavy-duty heating systems, this bracket is used in:
District Heating Networks: Secures 100-200L expansion tanks in central boiler plants, supporting 1-5MW heating systems for apartment complexes.
Industrial Process Heating: Mounts tanks in manufacturing facilities (food processing, chemical plants), with heat-resistant coating for proximity to steam pipelines (≤180°C).
Power Generation: Used in cogeneration plants, supporting expansion tanks in combined heat and power (CHP) systems, compliant with ISO 13709 (petroleum and natural gas industries).
Large Commercial Buildings: Installs in hotels, hospitals, and shopping malls with multiple boilers, ensuring uniform load distribution across mechanical room layouts.
Engineering Support: Free site survey and bracket layout design, optimizing installation for seismic zones (up to 8.0 on the Richter scale).
Longevity Assurance: 10-year warranty on structural integrity, with annual corrosion inspections included for large-scale projects.
Sustainability Credentials: Manufactured with 90% recycled steel, aligning with LEED v4 materials credits for green building certifications.
Easy-consoles are suitable for mounting expansion vessels up to 25-litre.

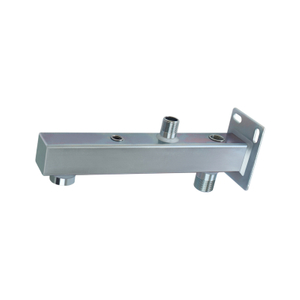

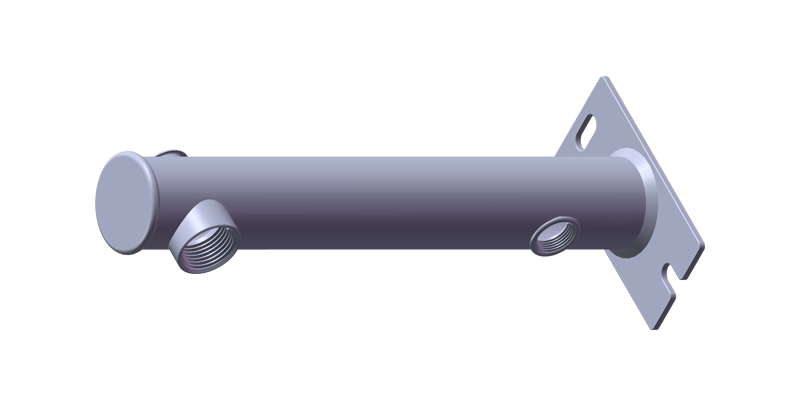

The expansion tank is suspension-mounted on the ¾" socket of the console. The expansion in-line is mounted on the ½" connection. The air vent or manometer can be mounted on the ½" connection on the top.

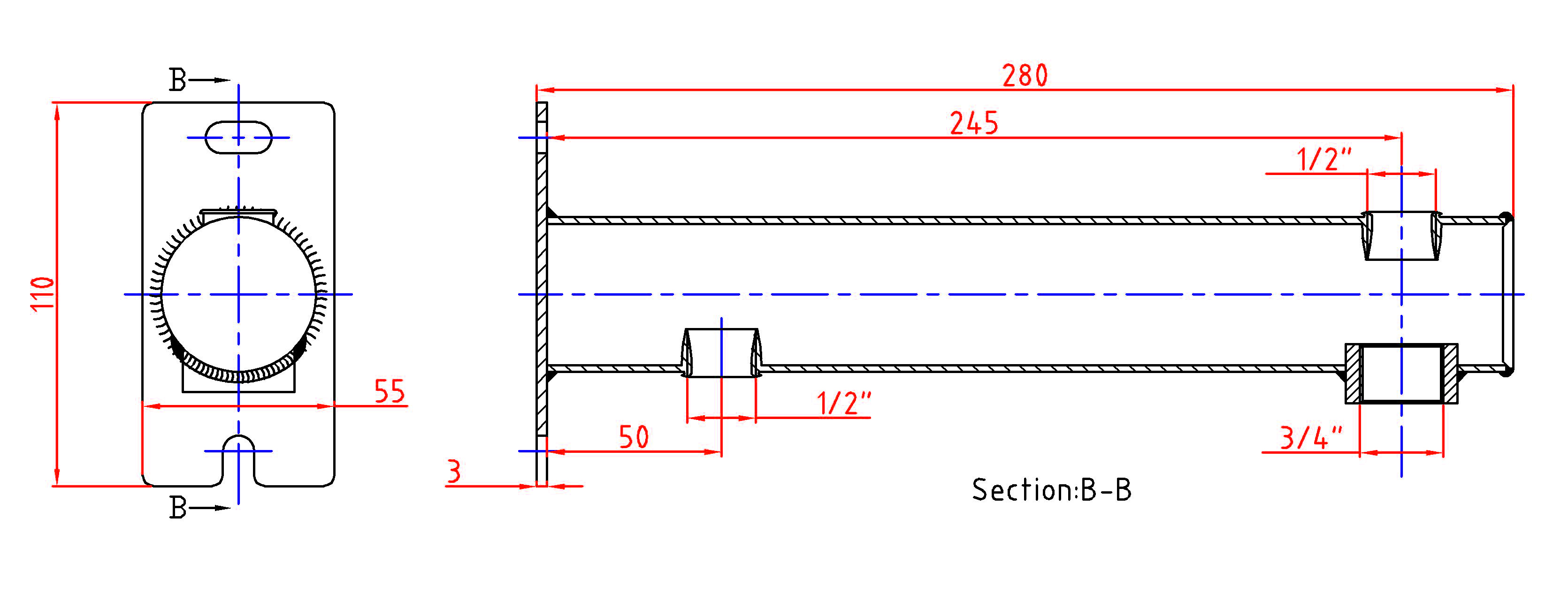

The console is equipped with a wall plate which has 2-slot holes. The open slot hole is located at the bottom, so that pre-installation of a wall bolt is possible. The cross-slot hole is located at the top, so that a vertical installation can also be realized.

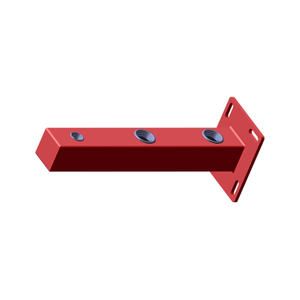

Color: Red (RAL 3013), White (RAL9010), Gray (RAL7040)
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products.
Option two: (Carton)
• Packing: each product with a bubble bag, then bulk- packed in carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:25pcs to 30pcs.
• Neutral packaging for all products.
