| Material: | |
|---|---|
| Quantity: | |
The Square Expansion Tank Bracket Steel 35×35 is a space-saving solution designed for mounting small expansion tanks (2-30L) in residential, RV, and light commercial hydronic systems. Engineered with a compact 35×35mm steel frame and adjustable components, this bracket optimizes limited space while providing reliable support for small-scale heating applications.
Ultra-Compact Design:
35×35×2mm Q235B steel tubing supports 80kg static load and 50kg dynamic load, with a footprint of just 100×100mm—ideal for micro mechanical rooms and under-sink installations.
Adjustable mounting slot (10mm width) fits tanks with 80×80mm mounting patterns, including mini expansion tanks for compact boilers.
Corrosion & Vibration Resistance:
Zinc-plated finish (50μm) with acrylic topcoat, resisting 300 hours salt spray and low-humidity environments (RH ≤60%), ensuring 8+ years of service in typical residential use.
1.5mm rubber pads reduce noise by 10dB and protect tank surfaces from scratches during adjustment.
Easy DIY Installation:
Lightweight (1.2kg) with pre-drilled M5 holes, installable in 10 minutes using basic tools—perfect for DIY enthusiasts and small contractors.
Flat-back design (clearance ≤15mm) fits into 100mm-thick walls and RV cabinetry, maximizing space in tight environments.
Compliance & Safety:
Meets EN 13816 and ASME BPVC Section VIII for small-scale systems, with load tested at 120% of rated capacity for safety margins.
UV-resistant finish for limited outdoor use (e.g., protected RV storage compartments), with optional anti-rust lubricant for coastal areas.
Ideal for small-scale and mobile hydronic systems, this bracket is used in:
RV & Mobile Homes: Secures 2-10L tanks in compact boiler systems, compliant with RVIA standards for transport vibration (5G, 10-500Hz).
Under-Sink Heating: Mounts mini tanks in apartment bathrooms, providing localized heat for radiant floor mats without occupying closet space.
Small Commercial Retrofitting: Supports 5-20L tanks in converted retail spaces and coffee shops, with sleek design suitable for visible installations.
Greenhouse Heating: Secures small expansion tanks in hobby greenhouses, with corrosion-resistant finish for moderate humidity (RH ≤70%).
Micro-Space Optimization: Smallest footprint in its class, solving space challenges in RVs, tiny homes, and under-sink installations.
Cost-Effective Solution: 20% more affordable than comparable stainless steel brackets, ideal for budget-sensitive small projects.
Plug-and-Play Design: No complex assembly—simply mount and connect, reducing installation errors for non-professional users.
Niche Compliance: Specifically engineered for small tanks and low-load systems, meeting safety standards for residential and mobile applications.
This Easy-console is suitable for mounting expansion vessels up to 18-litre.

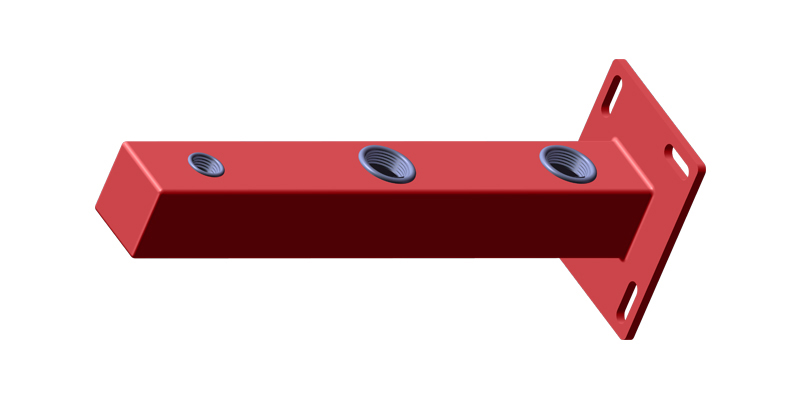

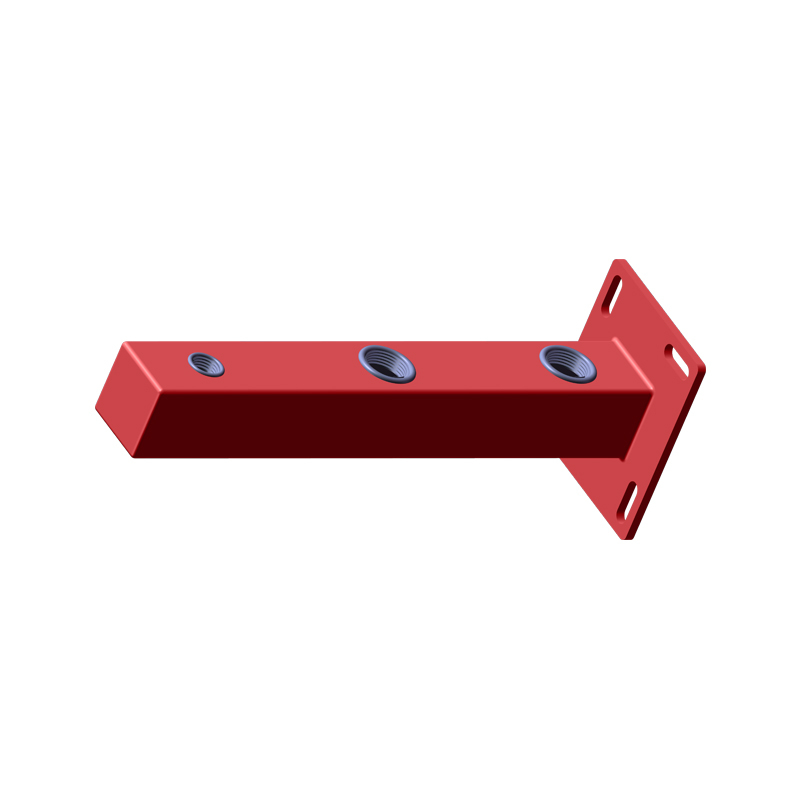

The 3 connections on the top of the console can be used to mount respectively:
• ¼” manometer
• ½” safety valve
• ½” auto air vent

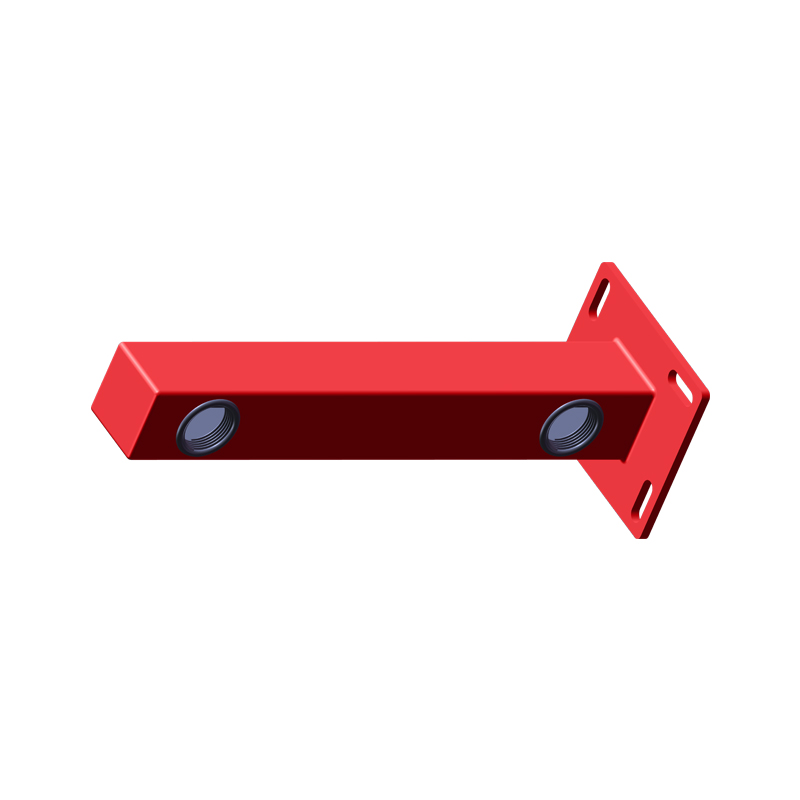

The expansion tank is suspension mounted on the ¾" connection of the console. The expansion line is mounted on the ¾" connection near to wall-installation plate.
The console is equipped with a wall-installation plate which has 4-slot holes. 2 cross slot holes are located at the bottom, so that pre-installation of a wall bolt is possible. The rest 2 cross-slot holes are located at the top, so that a vertical installation can also be realized.
Color: Red (RAL 3013 or RAL 3020)
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with a bubble bag, then bulk- packed in carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:25pcs to 30pcs.
• Neutral packaging for all products.
