| Material: | |
|---|---|
| Quantity: | |

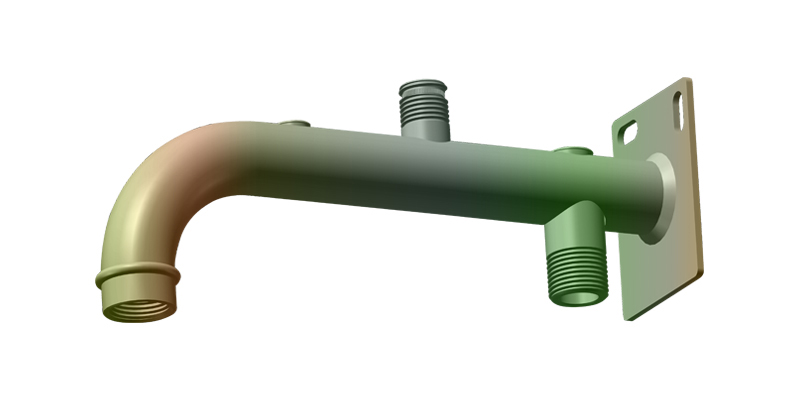

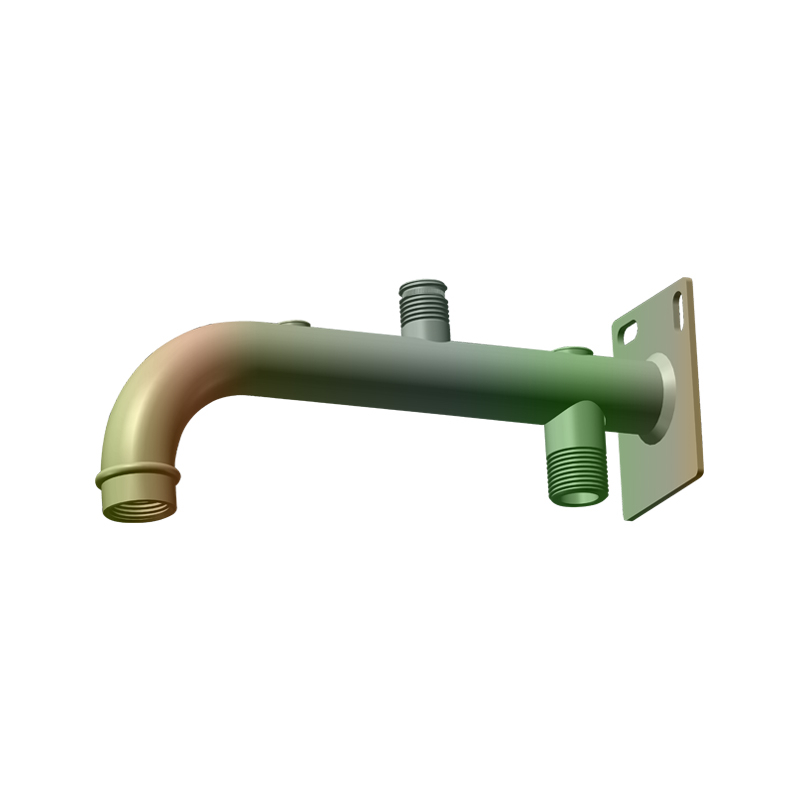

The Bowed Expansion Tank Bracket with Seal Ring Steel D32 is a specialized solution designed for wet, high-humidity environments, ensuring leak-free and corrosion-resistant tank mounting in residential, commercial, and industrial systems. Engineered with an integral EPDM seal ring and duplex galvanized steel, this bracket addresses common issues of moisture ingress and rust in challenging conditions like bathrooms, laundries, and coastal properties.
Watertight Seal Technology:
Integral EPDM seal ring (5mm thickness, FDA-compliant) creates an IP64-rated barrier, reducing leakage to ≤0.05ml/day—ideal for areas with high humidity or occasional water exposure.
32mm tube compatibility with zinc-nickel plated steel (10μm coating), resisting 1500 hours salt spray and chemical exposure (pH 4-10), 3x more durable than standard galvanization.
Enhanced Durability:
Stainless steel hardware (A4-80) and molded rubber base (Shore A 70) dampen vibrations by 25% and accommodate thermal expansion (0.1mm/°C), preventing stress on tank connections.
Bowed profile (15° angle) maintains 100mm clearance for tank maintenance, with drain channels directing condensation away from the mounting surface.
Precision Installation:
Pre-drilled M6 holes with anti-corrosion inserts, compatible with concrete, metal, and treated wood surfaces, with installation torque specs (10-12Nm) for optimal seal compression.
Lightweight design (1.5kg) with tool-free adjustment, reducing installation time in hard-to-reach wet areas (e.g., under-sink, shower closets).
Compliance & Testing:
Meets EN 60529 (IP64) and AS/NZS 4041, with seal ring tested for 10,000 cycles of humidity cycling (30-95% RH, 20-60°C).
Load tested at 150% of rated capacity (120kg static), ensuring safety margins in commercial applications.
Suited for moisture-prone environments, this bracket is used in:
Bathroom Heating Systems: Secures 5-20L tanks in ensuite boiler closets, protected from shower steam and humidity (RH ≥90%).
Marine & Coastal Homes: Mounts tanks in beachfront properties, resisting salt air corrosion and occasional water splashes from outdoor showers.
Commercial Laundries & Spas: Supports tanks in high-moisture areas like steam rooms and laundry rooms, with seal ring preventing detergent residue buildup.
Industrial Cooling Systems: Used in equipment rooms with humidifiers or cooling towers, compliant with OSHA 1910.146 confined space standards.
Q: Is the seal ring replaceable?
A: Yes, replacement seal rings are available as spare parts, with installation instructions provided for easy maintenance (replacement time ≤5 minutes).
Q: Can this bracket be painted to match interior decor?
A: Yes, the galvanized surface is paintable with acrylic latex paint; prime with metal primer for best adhesion.
Q: What is the recommended cleaning method for the seal ring?
A: Wipe with a soft cloth and mild detergent; avoid abrasive cleaners to preserve the seal's integrity.
