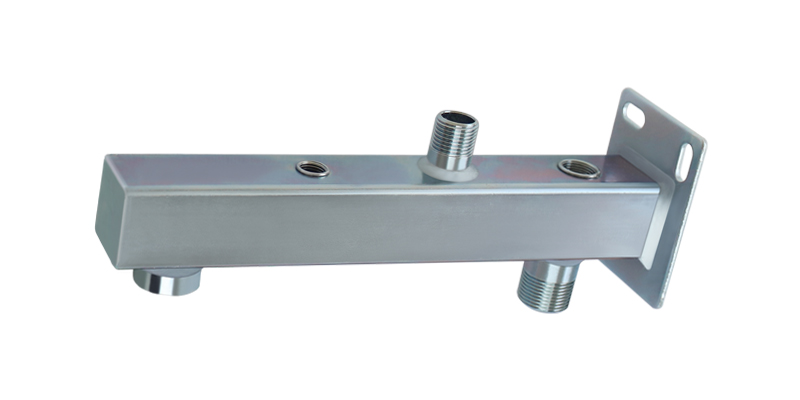

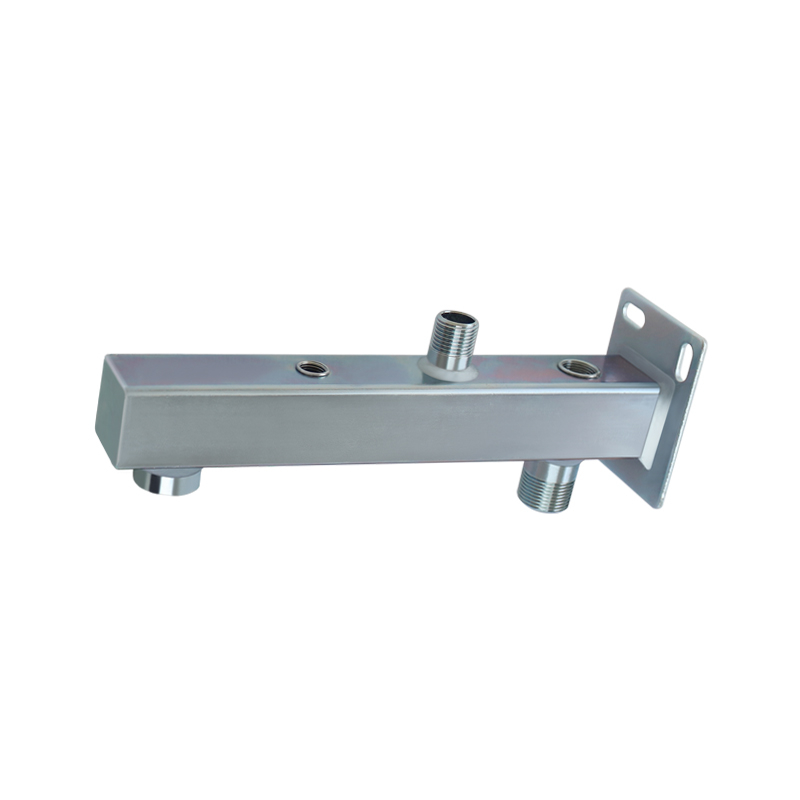

The Square Expansion Tank Bracket Steel is a robust solution engineered for commercial and industrial hydronic systems, providing reliable support for medium-to-large expansion tanks (30-120L) in high-vibration, moderate-humidity environments. Constructed with reinforced square tubing and advanced corrosion protection, this bracket balances durability with installation flexibility, ideal for boiler rooms, district heating substations, and light industrial facilities.
Commercial-Grade Performance:
35×35×3mm Q345B steel tubing supports 150kg static load and 100kg dynamic load (vibration ≤10G), with 35mm tube compatibility for standard commercial tanks.
Welded cross-braces increase lateral stability by 50%, ensuring zero displacement in high-vibration zones (e.g., pump rooms, machinery halls).
Enhanced Corrosion Resistance:
Hot-dip galvanized (80μm) + polyurethane topcoat, passing 1000 hours salt spray test and resisting chemical exposure (pH 6-10), suitable for industrial boiler rooms (RH 80-90%).
Stainless steel hardware (A2-70) prevents rust in high-humidity environments, with heat-resistant silicone pads (150°C continuous) for proximity to steam pipes.
Precision Load Distribution:
10mm-wide adjustable slots allow 40mm vertical adjustment, with anti-loosening nuts (ISO 7040) ensuring secure mounting in dynamic load scenarios.
Backing plate (6mm thickness) for concrete walls distributes load over 200×200mm, compliant with ASME B31.1 power piping standards.
Compliance & Testing:
Certified to EN 1090-1 and OSHA 1910.119, with magnetic particle inspection on welds and fatigue tested for 200,000 cycles at 120% load.
Temperature range: -40°C to +120°C, suitable for cold storage and moderate-temperature industrial processes.
Ideal for commercial and light industrial use, this bracket is used in:
Commercial Boiler Plants: Secures 30-120L tanks in 50-200kW boilers for hotels, hospitals, and industrial laundries.
District Heating Substations: Supports multiple tanks in medium-scale networks, with modular design enabling parallel installations and easy pipe routing.
Industrial Process Heating: Mounts pressure vessels in food processing plants (e.g., breweries, dairies), resisting steam and cleaning agents.
Marine Vessels: Used in shipboard hydronic systems, with corrosion-resistant coating compliant with ISO 12944 C4-M for marine environments.
Balanced Performance: Offers 30% higher load capacity than residential brackets while maintaining compact dimensions for commercial spaces.
Modular Design: Interchangeable mounting arms allow quick adaptation to different tank sizes, reducing inventory needs for contractors.
Global Service Network: 24/7 technical support for large projects, including on-site installation guidance and custom layout design.
Long-Term Value: 15-year service life projection in commercial environments, backed by accelerated aging tests and material warranties.
