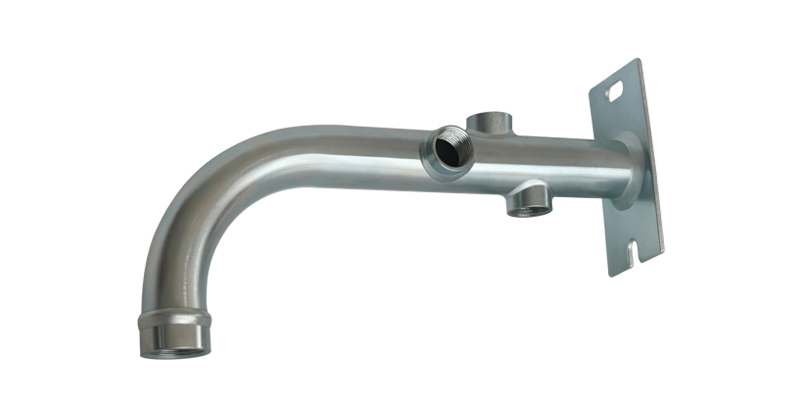

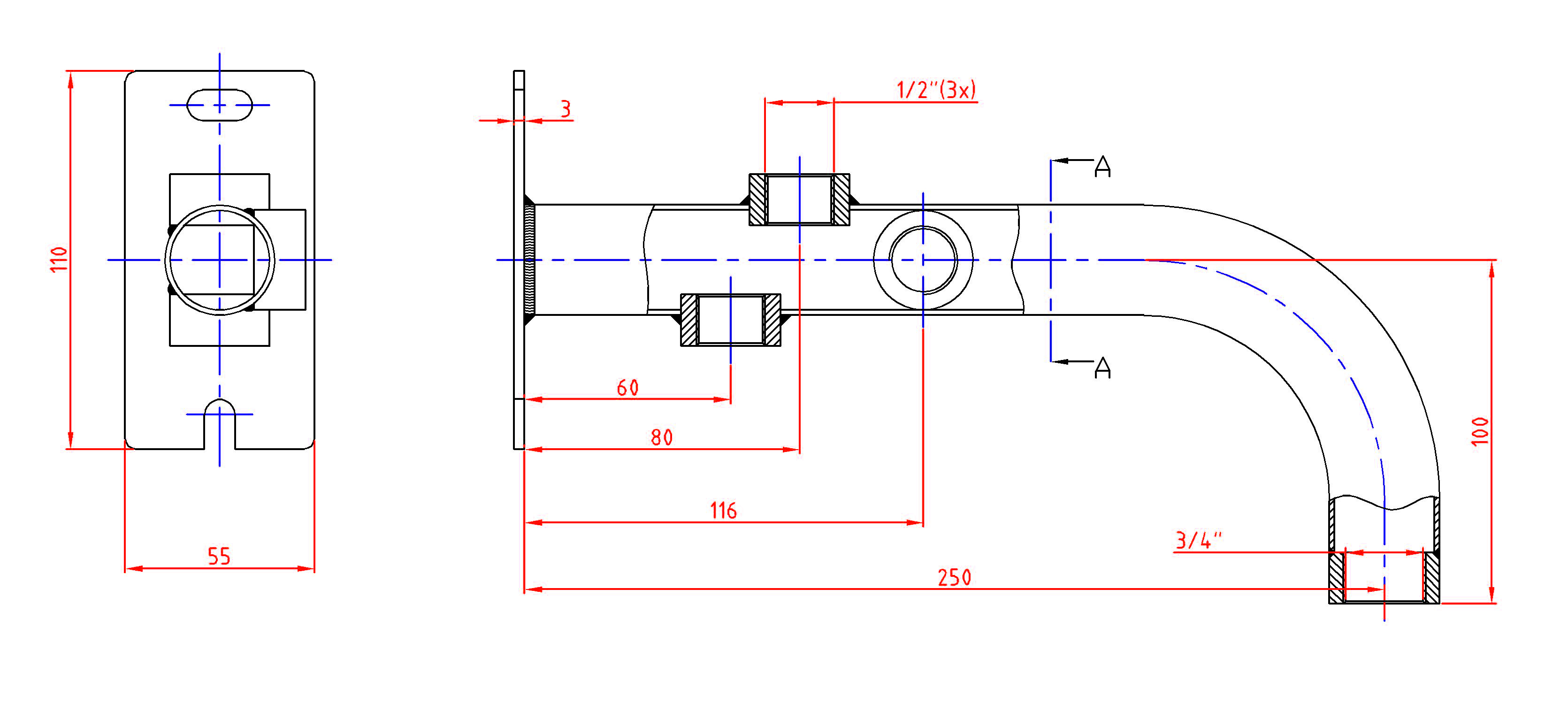

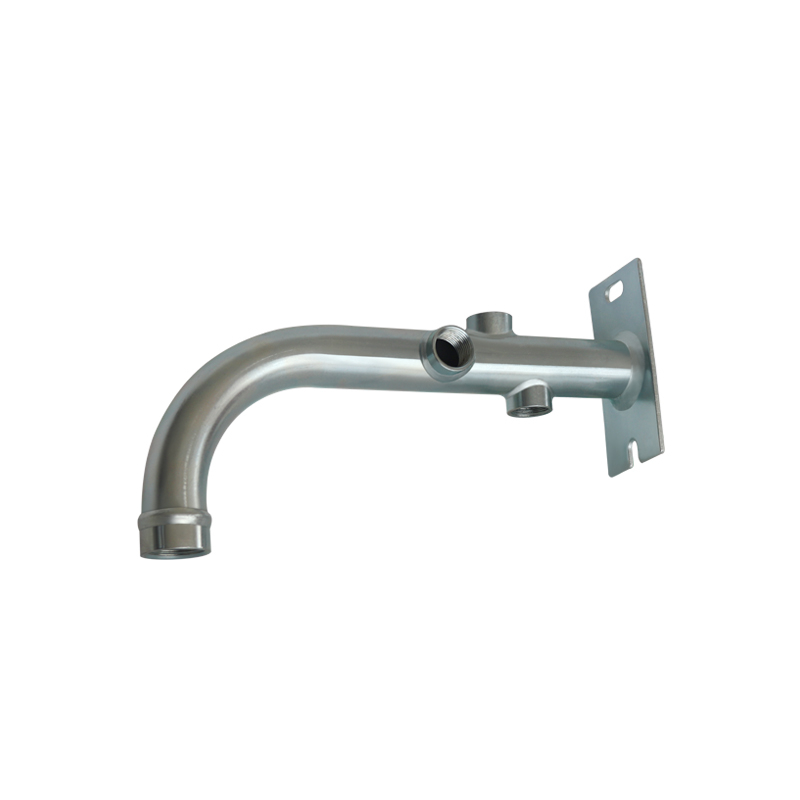

Bowed Expansion Tank Bracket (Steel D42)
This Easy-console is suitable for mounting expansion vessels up to 25-litre.

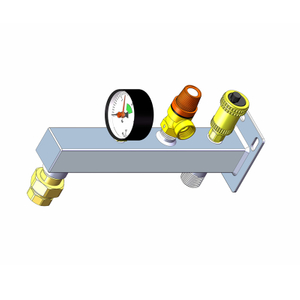

The connection on the top of the consoles can be used to mount ½” air vent, the consoles are equipped with a ½" side connection for mounting, for example, a safety valve or a combination of a 3-6 bar safety valve with pressure gauge.
The expansion tank is suspension mounted on the ¾" connection of the console. The expansion line is mounted on the ½" connection near to wall-installation plate.
The console is equipped with a wall plate which has 2-slot holes. The open slot hole is located at the bottom, so that pre-installation of a wall bolt is possible. The cross-slot hole is located at the top, so that a vertical installation can also be realized.
Color: Galvanized, blue passivated.
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with a bubble bag, then bulk- packed in carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:25pcs to 30pcs.
• Neutral packaging for all products.
