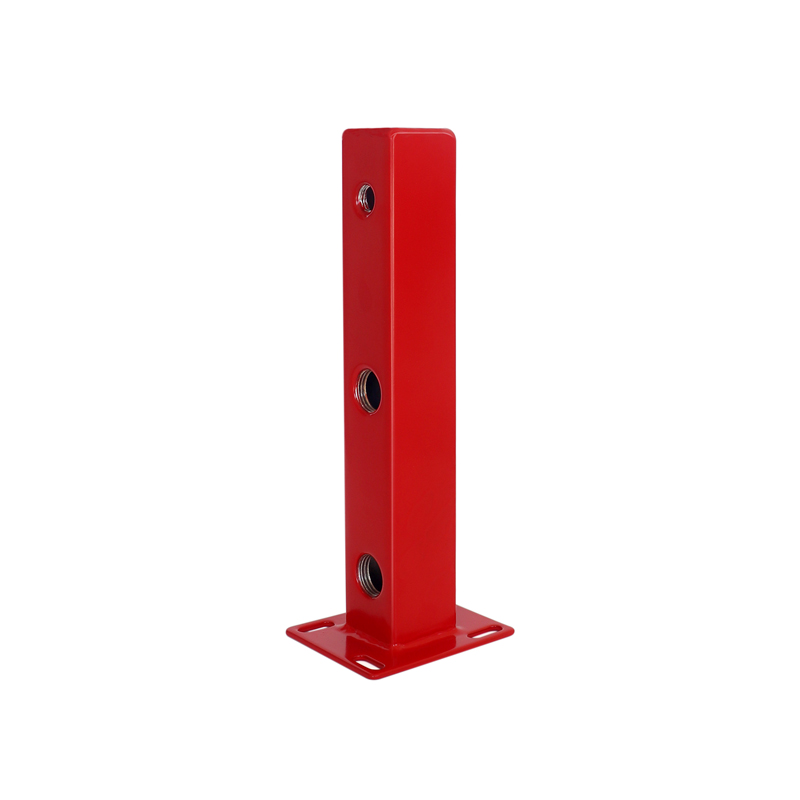

Square Expansion Tank Bracket (Stainless Steel 40*40)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

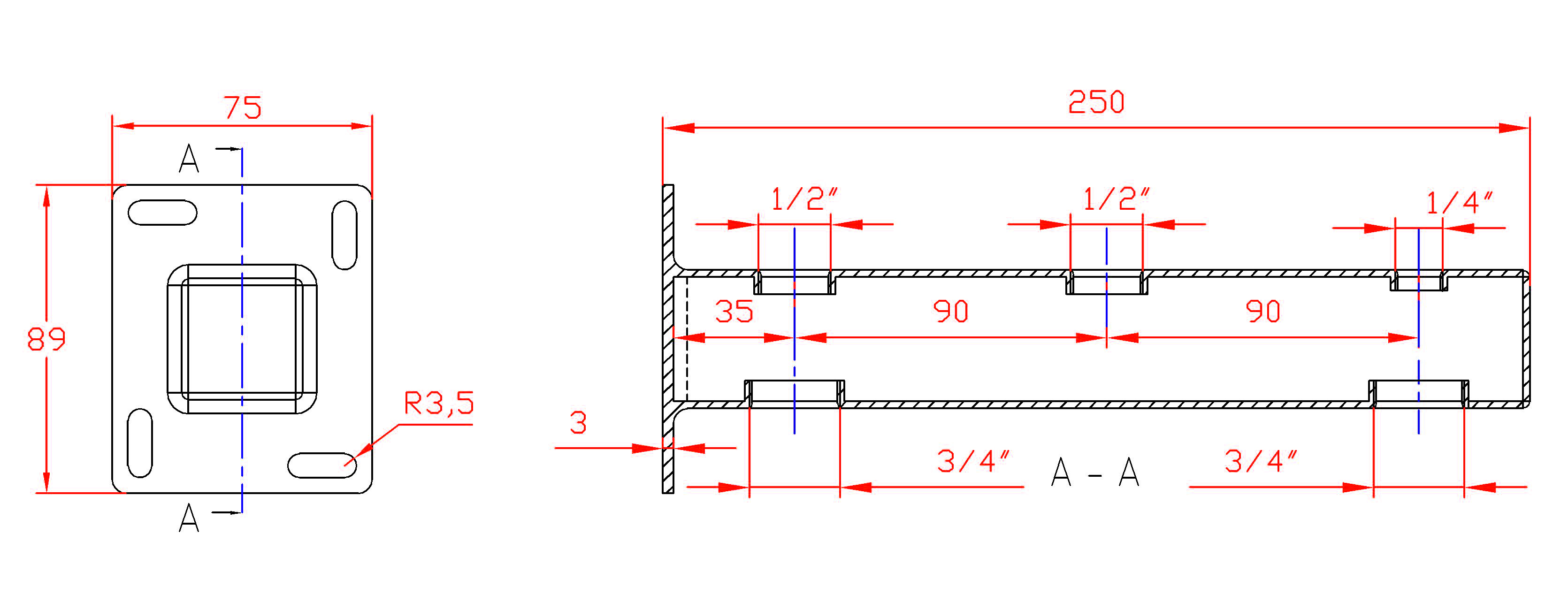

Product No.: EWS24051
Connection: 5 (1/4”, 1/2”x2, 3/4”x2)
Working pressure:  2-10 Bar
Working temperature: 1-99℃
Surface treatment: Powder coating, RAL3013
MOQ: 1000

Material:
Stainless Steel Powder Coating
Availability:
Quantity:
Inquire Add to Basket


 Square Expansion Tank Bracket  (Stainless Steel 40*40)

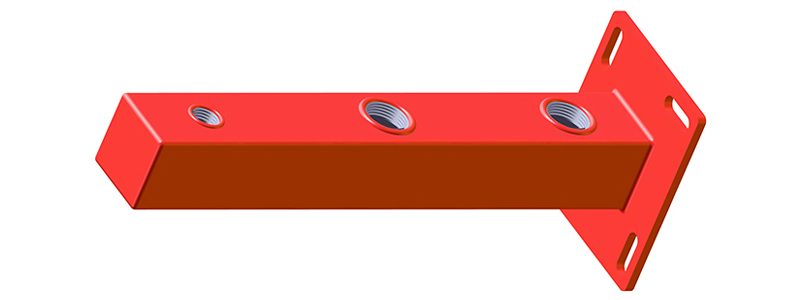

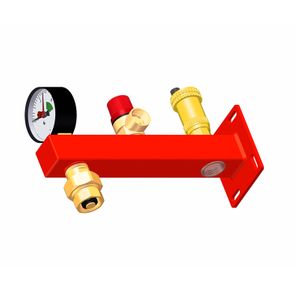

This Easy-console is suitable for mounting expansion vessels up to 18-litre.The 3 connections on the top of the console can be used to mount respectively:


•  ¼” manometer

•  ½” safety valve

•  ½” auto air vent


The expansion tank is suspension mounted on the ¾" connection of the console. The expansion line is mounted on the ¾" connection near   to wall-  installation plate.

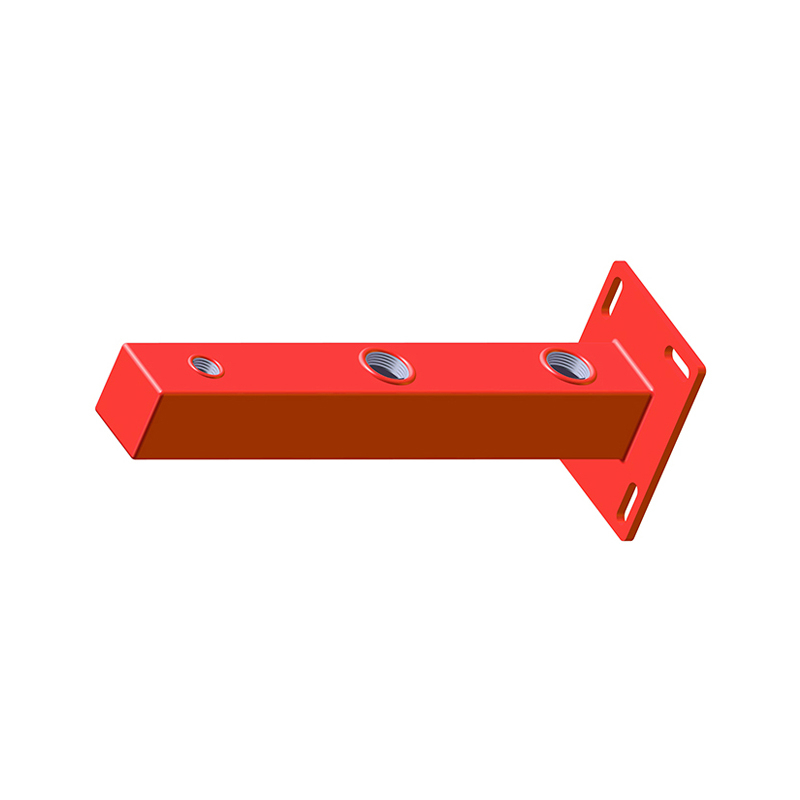

The console is equipped with a wall-installation plate which has 4-slot holes. 2 cross slot holes are located at  the bottom, so that pre-installation of   a  wall bolt is possible. The rest 2 cross-slot holes are located at the  top, so that a vertical installation can also be realized.

Color: Red (RAL 3013 or RAL 3020)









Packing details


Option one: (Plywood)



• Packing: each product with a bubble bag, then bulk- packed in plywood box.

• Box size:1200mm (length)*800mm (width)*1100mm (Height).

• Quantity:800pcs to 1000pcs.

• Neutral packaging for all products.


  Option two: (Carton)


• Packing: each product with a bubble bag, then bulk- packed in carton; all cartons put on the plywood pallet.

• Pallet size:1200mm (length)*800mm (width).

• Quantity:25pcs to 30pcs.

• Neutral packaging for all products.



Previous:
Next:
Square Expansion Tank Bracket (Stainless Steel 40*40)

RELATED PRODUCTS

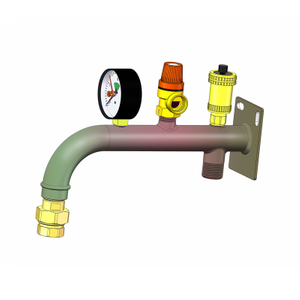

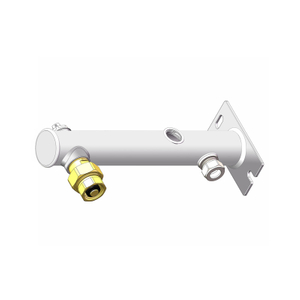

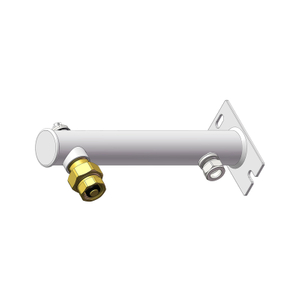

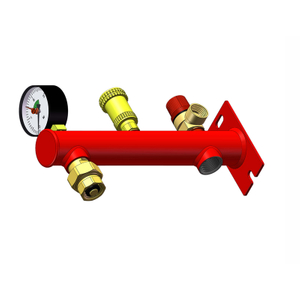

Round Expansion Tank Brackt (Steel D42)
Heavy-Duty Round Expansion Tank Bracket for Industrial Systems
Round Expansion Tank Brackt (Steel D42)
Heavy-Duty Round Expansion Tank Bracket for Industrial Boilers
Round Expansion Tank Brackt (Steel D42)
Round Expansion Tank Brackt (Steel D42)
Round Expansion Tank Brackt (Steel D42)
High-Strength Steel D42 Round Expansion Tank Bracket for HVAC Systems
Round Expansion Tank Brackt (Steel D42)
Modular Round Expansion Tank Bracket Kit for Hydronic Systems
Round Expansion Tank Brackt (Steel D42)
Heavy-Duty Round Expansion Tank Bracket for Commercial Heating
Round Expansion Tank Brackt (Steel D42)
Heavy-Duty Round Expansion Tank Bracket for Residential Heating
Round Expansion Tank Brackt (Steel D42)
Round Expansion Tank Bracket for Industrial Boilers
Bowed Expansion Tank Brackt (Steel D32)
Heavy-Duty Bowed Expansion Tank Bracket for Industrial Use
Bowed Expansion Tank Brackt With Seal Ring (Steel D32)
Leak-Proof Bowed Expansion Tank Bracket for Wet Environments
Round Expansion Tank Brackt Kit (Steel D42)
Round Expansion Tank Bracket Kit (Steel D42)
Square Expansion Tank Brackt Kit (Steel 35*35)
Square Expansion Tank Bracket Kit (Steel 35*35)
Round Expansion Tank Brackt Kit (Steel D42)
Heavy-Duty Round Expansion Tank Bracket for Commercial Boiler Rooms
Round Expansion Tank Brackt Kit (Steel D42)
Heavy-Duty Round Expansion Tank Bracket Kit for Residential Heating
Round Expansion Tank Brackt Kit (Steel D42)
Heavy-Duty Round Expansion Tank Bracket Kit for Industrial Use

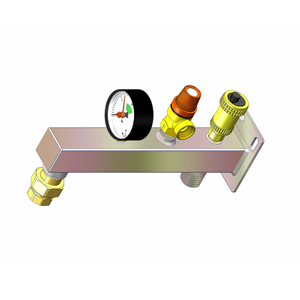

Square Expansion Tank Brackt Kit (Steel 40*40)
