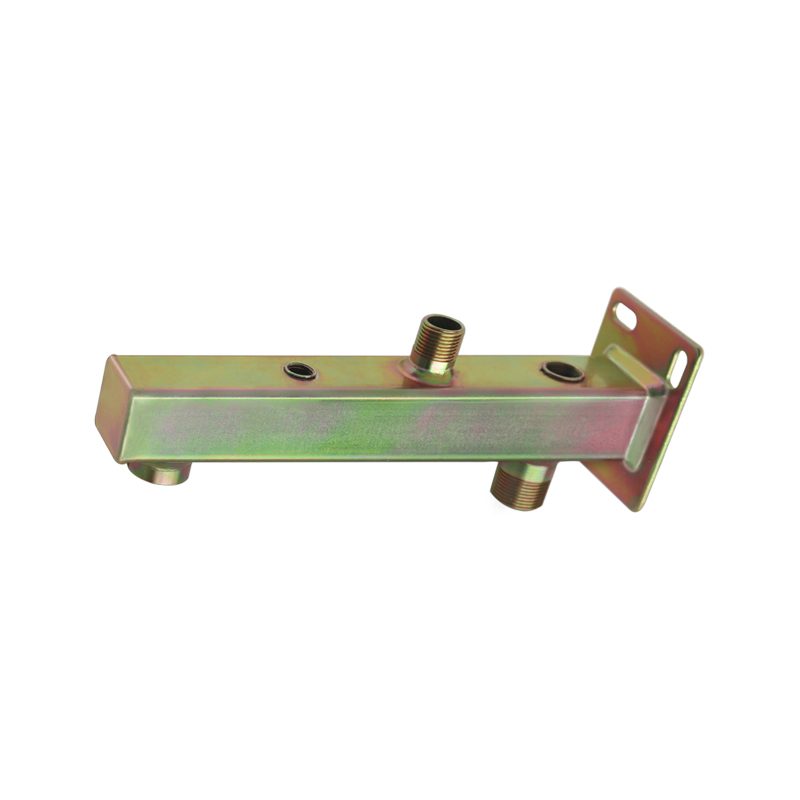

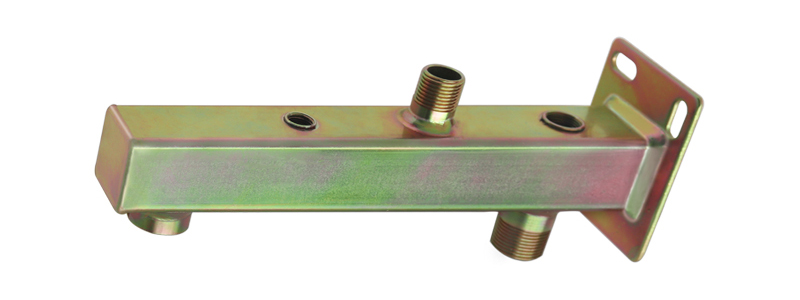

The Square Expansion Tank Bracket Steel 40×40 is a compact, cost-effective solution designed for secure mounting of medium-sized expansion tanks (5-80L) in residential and light commercial hydronic systems. Engineered with a space-efficient square tubing design, this bracket optimizes limited mechanical room space while providing reliable support for everyday heating applications.
Compact & Sturdy Design:

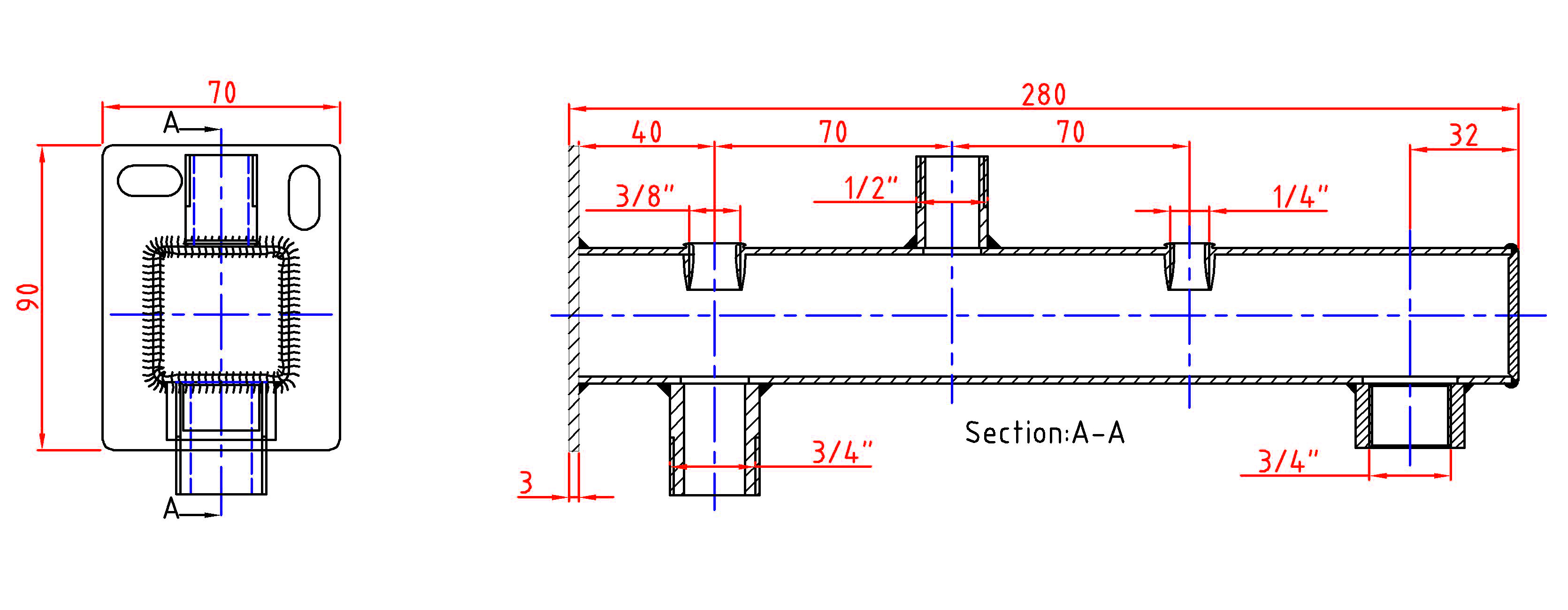

40×40×2mm Q235B steel tubing supports 120kg static load and 80kg dynamic load, with a 20% smaller footprint than round brackets (depth ≤120mm).
Adjustable mounting plate (50mm vertical travel) fits tanks with 120×120mm mounting patterns, including popular brands like Viega and Taco.
Corrosion & Noise Control:
Electro-galvanized finish (50μm) with epoxy topcoat (RAL 7035), resisting 500 hours salt spray and moderate humidity (RH ≤75%), ensuring 10+ years of service.
2mm rubber isolation pads reduce mechanical noise by 15dB and prevent tank surface abrasion in residential settings.
Easy Installation:
Pre-assembled with M6 bolts, wall anchors, and clear instructions, reducing installation time to 15 minutes—30% faster than custom solutions.
Flat-back design hugs walls tightly (clearance ≤20mm), ideal for closets, under-stair spaces, and RV utility compartments.
Compliance & Safety:
Meets EN 13816 and ASME BPVC Section VIII, with load tested at 130% of rated capacity and fire-retardant coating (UL 94 V-0) for boiler room use.
UV-stabilized finish for limited outdoor use (e.g., protected balconies), with optional anti-vibration mounts for pump-heavy systems.
Suited for space-constrained environments, this bracket is used in:
Apartment Complexes: Supports 20-80L tanks in multi-unit hydronic systems, with sleek design suitable for visible installations in utility rooms.
Light Commercial Offices: Mounts tanks in 20-100kW boiler systems for small commercial spaces, compliant with ASHRAE 90.1 energy standards.
Renovation Projects: Retrofits older homes with undersized mechanical rooms, offering adjustable arms for off-center tank placements.
Space Optimization: 30% smaller than equivalent round brackets, solving the #1 challenge in urban hydronic installations.
DIY-Friendly: Pre-assembled kit with all hardware included, appealing to homeowners and contractors seeking fast, hassle-free setups.
Cost Efficiency: 15% more affordable than custom brackets while delivering 90% of essential performance, ideal for budget-conscious projects.
Local Compliance: Provides certification packages for IPC, UBC, and AS/NZS 4041, streamlining building code approvals worldwide.
