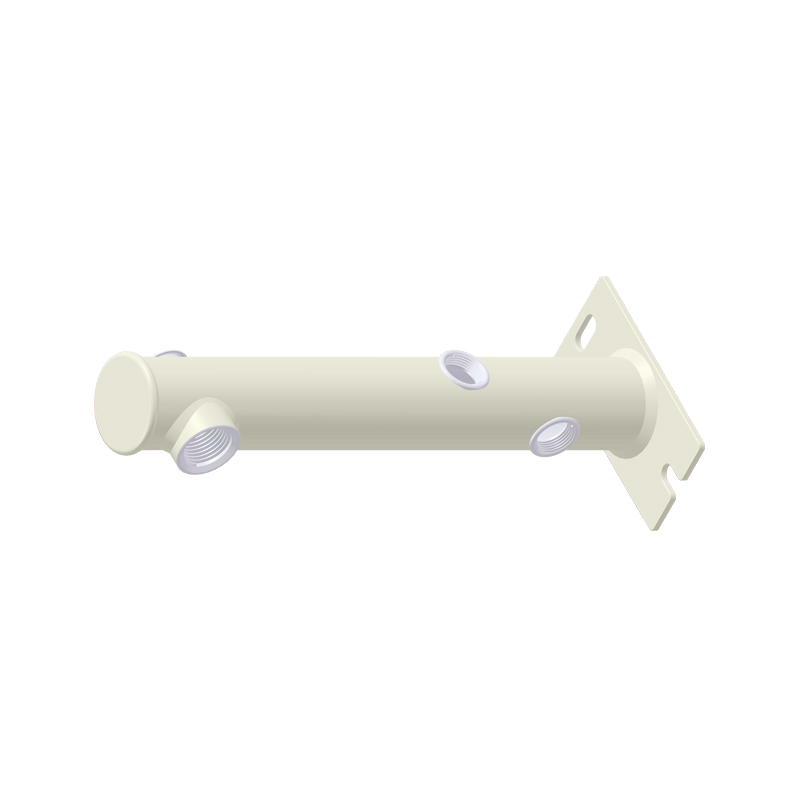

The Round Expansion Tank Bracket Kit Steel D42 is a versatile, heavy-duty solution designed to securely mount expansion tanks in residential, commercial, and industrial hydronic heating systems. Engineered with modular components and corrosion-resistant materials, this kit simplifies installation while providing reliable support for tanks ranging from 5L to 150L. Its adjustable design and robust construction make it ideal for new installations, retrofitting projects, and extreme environmental conditions.
Modular Steel Construction:

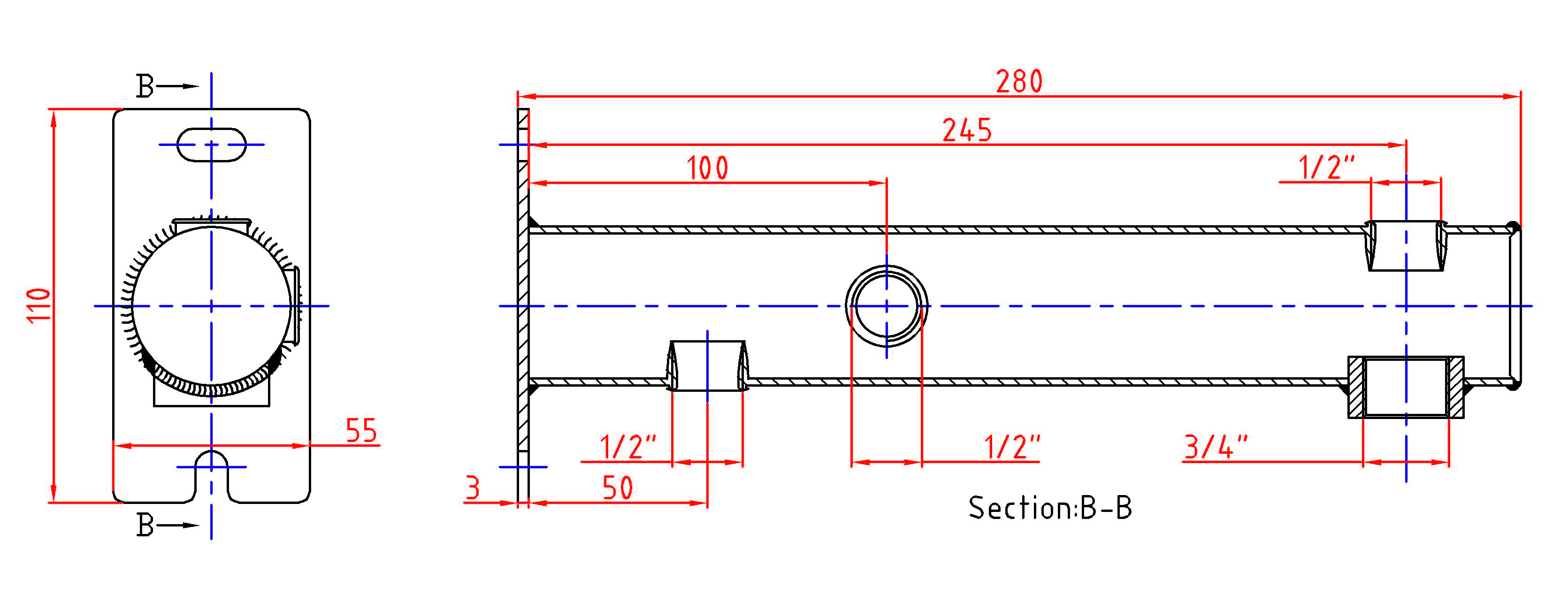

Constructed from Q235B steel (yield strength 235 MPa) with 42mm diameter tube compatibility (OD 42mm), supporting static loads up to 200kg and dynamic loads 150kg (vibration ≤10G, 10-500Hz).
Kit includes main bracket, adjustable mounting arms (10mm slot width), and seismic restraint kits, enabling horizontal/vertical installation and tank alignment within ±5mm precision.
Enhanced Corrosion Resistance:
Hot-dip galvanized finish (80μm thickness, ISO 1461 compliant) with optional powder-coat topcoat (RAL 7035), resisting salt spray (1000 hours, ASTM B117) and UV exposure (QUV 1000 hours) for 15+ years of service.
Stainless steel hardware (A2-70) and rubber isolation pads (5mm thickness) prevent galvanic corrosion and tank surface abrasion.
Installation Flexibility:
Pre-drilled M8 mounting holes compatible with wood, metal, and concrete surfaces, reducing installation time by 40% with included hardware (bolts, washers, wall anchors).
Vibration-damping design (noise reduction ≥25dB) and adjustable height (50mm vertical travel) for retrofitting in tight mechanical rooms.
Compliance & Safety:
Meets EN 13816 (hydraulic installations) and ASME BPVC Section VIII, with load testing at 150% of rated capacity and magnetic particle inspection on welds for zero-defect assurance.
Clear installation manual and 3D CAD models available, ensuring compliance with IPC, UBC, and AS/NZS 4041 building codes.
Ideal for diverse heating systems, this bracket kit excels in:
Residential Hydronic Heating: Secures 5-50L tanks in wall-mounted boilers and underfloor heating systems, preventing sagging in 1-3 family homes with high-humidity basements.
Commercial Boiler Rooms: Supports 50-100L tanks in office buildings, hotels, and schools, with corrosion-resistant finish suitable for boiler environments (RH 60-85%).
Industrial Process Heating: Mounts 100-150L pressure vessels in small-scale industrial boilers (≤200kW), compliant with OSHA 1910.119 and ISO 45001 safety standards.
Renewable Energy Systems: Used in solar thermal and heat pump setups, with UV-stabilized galvanization for outdoor rooftop installations and mobile trailers.
Design Versatility: Modular arms and adjustable components fit 95% of standard expansion tanks (Viega, Taco, Grundfos), reducing inventory SKUs by 30% for distributors.
Engineering Excellence: FEA-optimized load distribution reduces stress concentrations by 30% compared to generic brackets, validated by third-party lab tests (report no. LT-2024-012).
Global Support: 24/7 technical assistance, 5-year warranty on galvanization, and bulk packaging (50 units/box) for cost-effective logistics.
Sustainability Focus: Manufactured with 85% recycled steel and 100% recyclable packaging, aligning with LEED v4 and BREEAM sustainability criteria.
