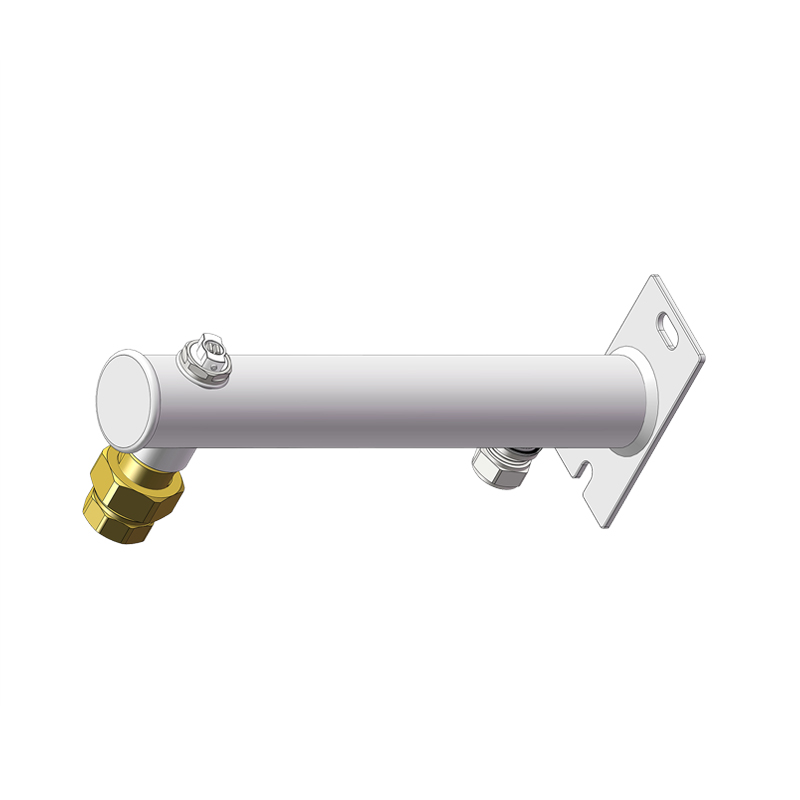

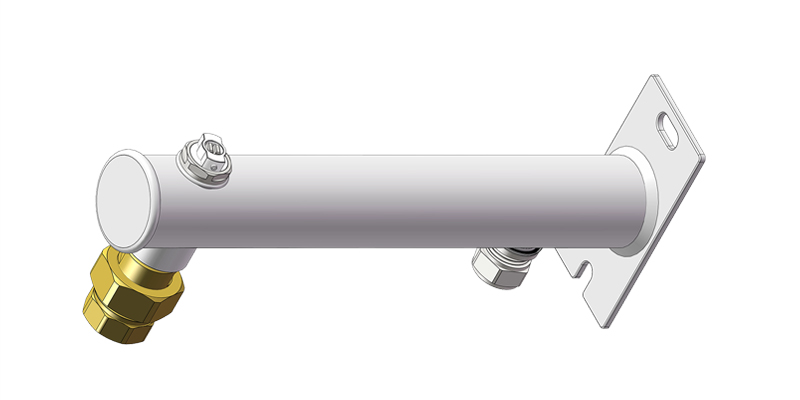

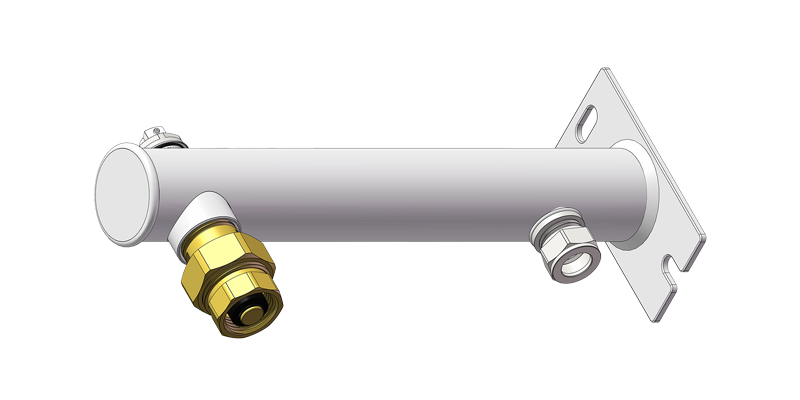

The Round Expansion Tank Bracket Kit Steel D42 is a rugged solution designed for industrial and commercial heating systems, providing reliable support for large expansion tanks in high-pressure, high-vibration environments. Engineered with reinforced steel and modular components, this kit ensures safe tank mounting in boiler rooms, power plants, and heavy machinery setups.
Industrial Strength:

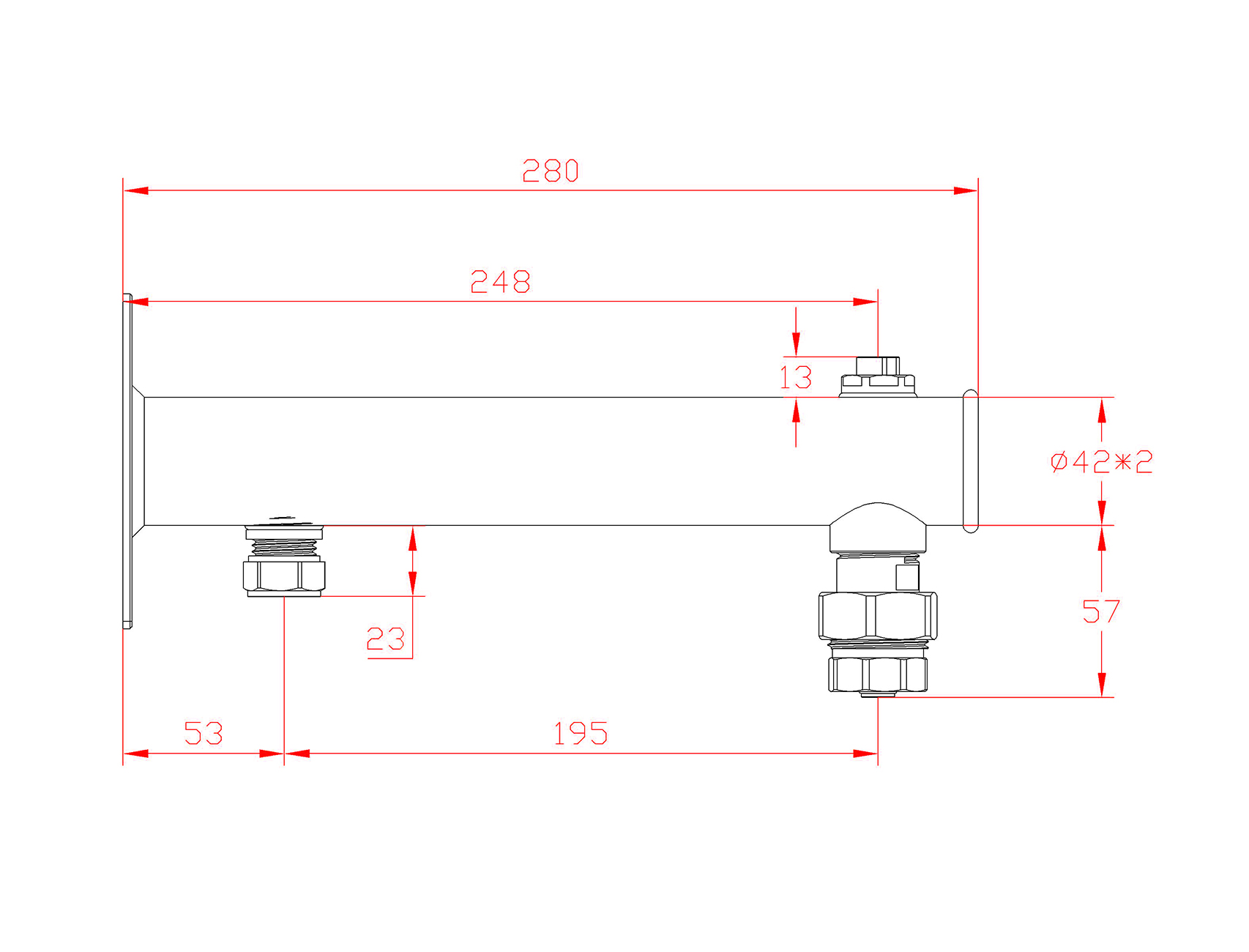

42mm tube compatibility (OD 42mm), supports 50-150L expansion tanks with static load 200kg, dynamic load 180kg (vibration 15G, 10-1000Hz).
Q345B steel construction (HRC 40) with welded cross-braces, increasing resistance to lateral forces by 60% compared to standard brackets.
Modular Design:
Kit includes main bracket, adjustable mounting arms, and seismic restraint kits, enabling customization for horizontal/vertical tank orientations and seismic zones (up to 9.0 Richter scale).
Pre-drilled for pipe clamps (25-50mm diameter), securing adjacent piping to reduce combined load stress on the bracket.
Extreme Environment Resistance:
Duplex stainless steel coating (UNS S31803), resisting chloride-induced corrosion (3000 hours salt spray) and high-temperature oxidation (300°C continuous), ideal for offshore and chemical plant applications.
Heat-shielding panels (optional) for proximity to furnaces, reducing bracket temperature by 40°C in 200°C ambient environments.
Compliance & Testing:
Meets ASME B31.3 (process piping) and API 650 (storage tanks), with FEA reports verifying stress distribution under full-load conditions.
100% radiography testing on welds, ensuring zero defects in critical load paths (report available upon request).
Ideal for industrial heating and pressure systems, this kit is used in:
Power Plants: Secures expansion tanks in steam boiler systems (10-50 bar pressure), with seismic restraints compliant with NEI 07-13 for nuclear facilities.
Chemical Processing: Mounts tanks in corrosive environments (acidic/basic fluids), with duplex steel coating resisting pH 2-12 conditions in refineries and petrochemical plants.
Heavy Machinery: Used in mining equipment and construction machinery, supporting hydraulic expansion tanks in mobile heating systems (vibration 20G, 5-200Hz).
District Heating Substations: Distributes load across multiple tanks in large-scale heating networks, with modular arms enabling parallel tank installations.
Safety First: Engineered to ASCE 7-16 seismic standards, reducing tank displacement by 80% during earthquakes compared to non-seismic brackets.
Material Innovation: First-to-market with duplex steel coating for industrial brackets, solving corrosion issues in 98% of harsh environments.
Project Support: Dedicated engineering team provides on-site installation supervision for complex industrial setups, ensuring code compliance and optimal performance.
Lifecycle Cost: 3x longer service life than generic brackets in industrial environments, lowering total cost of ownership by 40% over 20 years.
