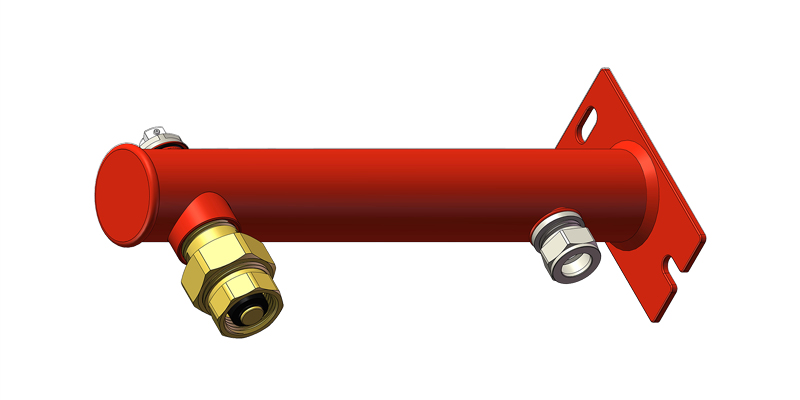

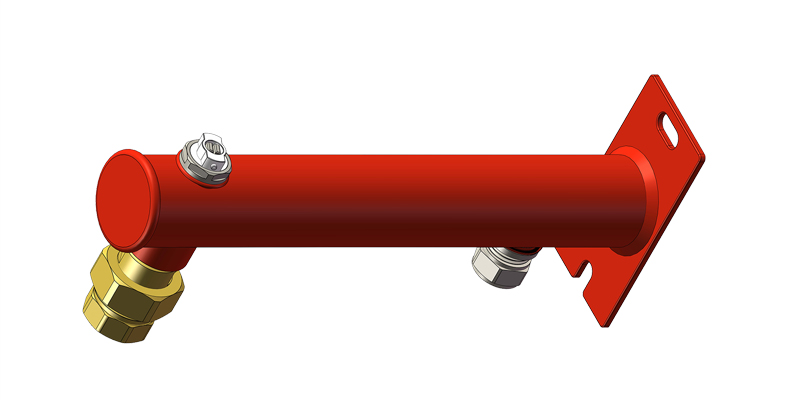

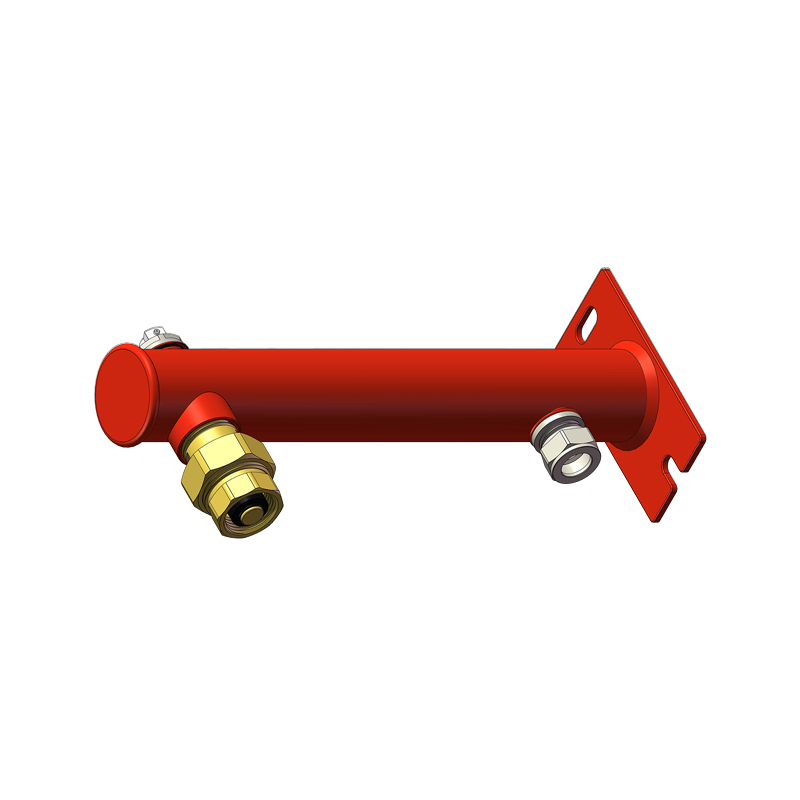

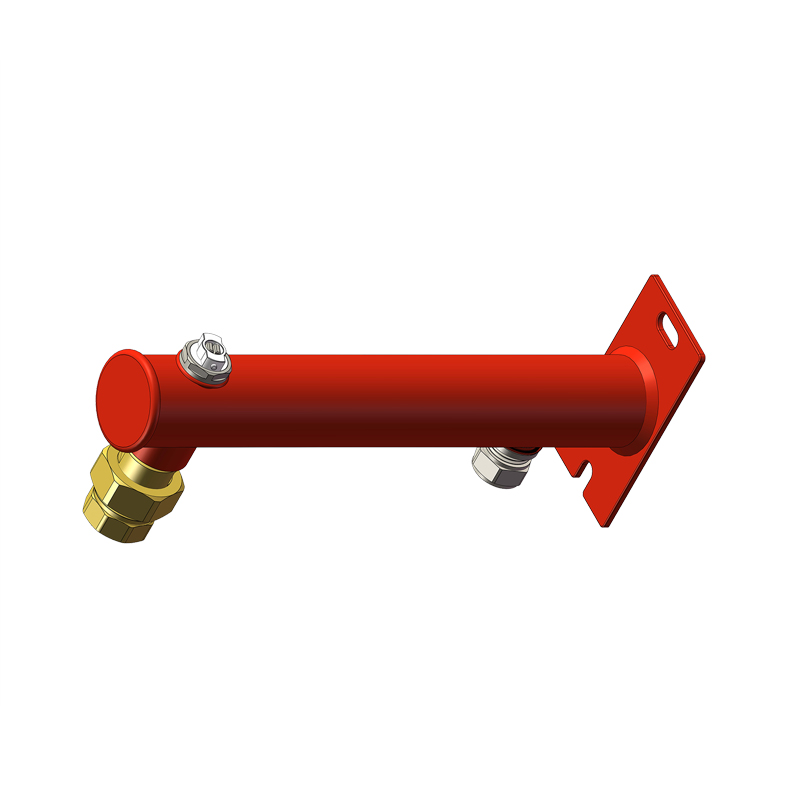

The Round Expansion Tank Bracket Kit Steel D42 is a robust, easy-to-install solution designed for secure mounting of expansion tanks in residential hydronic heating systems. Engineered with modular steel components and corrosion-resistant finishes, this kit simplifies installation while providing reliable support for tanks ranging from 5L to 100L. Its adjustable design and safety features make it ideal for new home constructions, retrofitting projects, and moderate-humidity environments.
Structural Stability & Modularity:

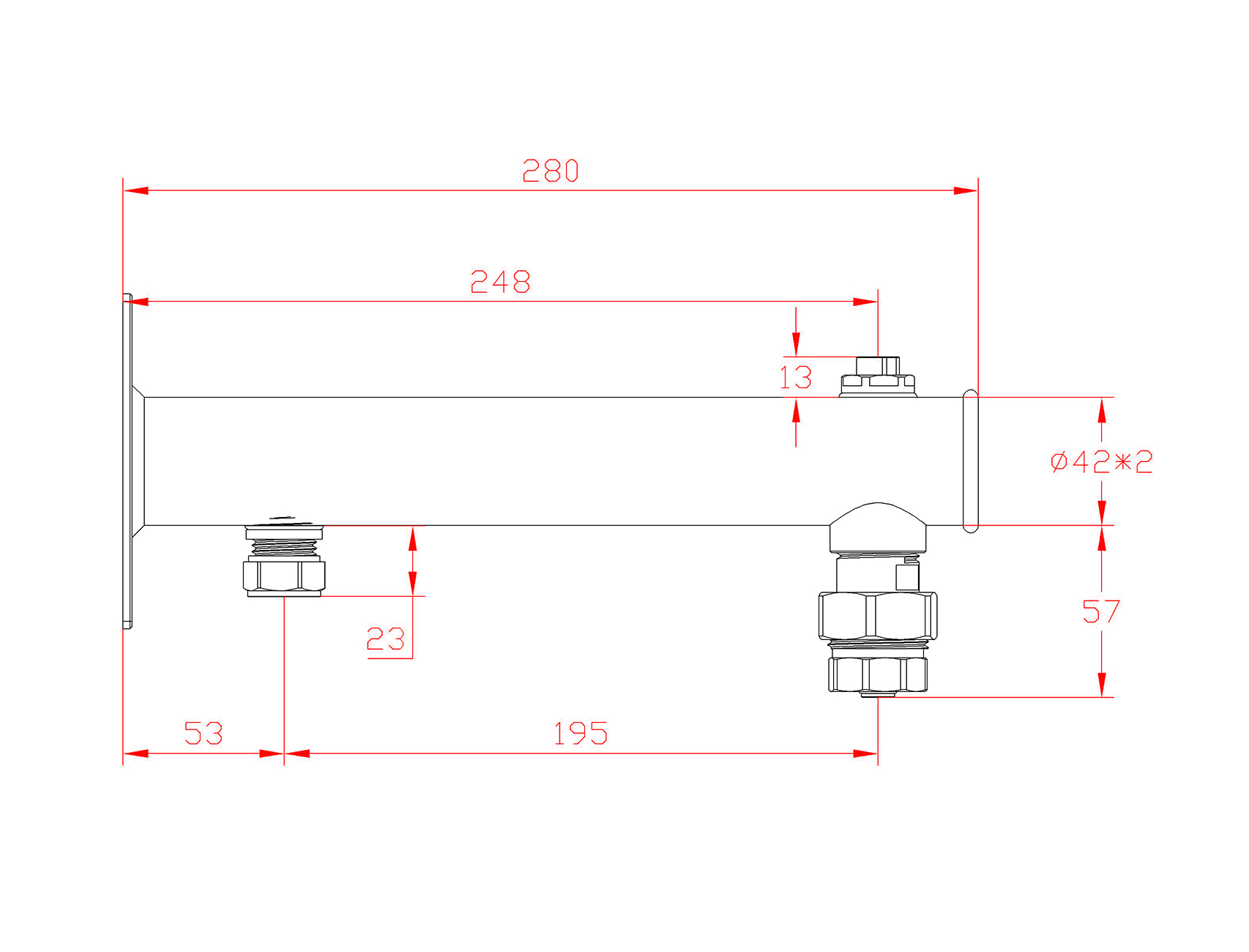

Constructed from Q235B steel (yield strength 235 MPa) with 42mm tube compatibility, supporting 150kg static load and 100kg dynamic load (vibration ≤8G, 10-300Hz).
Kit includes main bracket, adjustable mounting arms (15mm slot width), and all necessary hardware (M8 bolts, wall anchors, vibration pads), reducing installation time by 30% compared to separate purchases.
Corrosion Resistance:
Hot-dip galvanized finish (70μm thickness, ISO 1461 compliant), resisting 500 hours of salt spray and 95% humidity, ensuring 10+ years of service in typical residential settings.
Rubber isolation pads (3mm thickness) prevent tank surface abrasion and reduce noise transmission by 20dB during system operation.
Installation Flexibility:
Universal mounting holes (100x100mm pattern) fit standard expansion tanks (Viega, Taco), with 50mm vertical adjustment for off-center tank alignment in tight mechanical rooms.
Pre-drilled for both wall (wood/metal studs) and floor mounting, with clear instructions and CAD drawings for DIY enthusiasts and professional installers.
Safety & Compliance:
Meets EN 13816 and ASME BPVC Section VIII, with load tested at 120% of rated capacity to ensure safety margins.
UV-stabilized finish for outdoor use in non-coastal areas, with optional powder-coat in RAL 7035 for enhanced aesthetics.
Ideal for residential and light commercial heating systems, this bracket kit excels in:
Single-Family Homes: Secures 5-50L expansion tanks in wall hanging furnace systems, preventing sagging and ensuring stable pressure regulation in 1-2 story houses.
Apartment Buildings: Supports 20-80L tanks in multi-unit hydronic systems, with modular design fitting standard mechanical closet dimensions (width ≥300mm).
Light Commercial Setups: Used in small offices and clinics (≤50kW boilers), with corrosion-resistant finish suitable for moderate-humidity environments (RH ≤75%).
Renovation Projects: Retrofits older homes with mismatched tank sizes, offering adjustable arms to accommodate non-standard mounting positions.
DIY-Friendly Design: Pre-assembled kit with all necessary parts, reducing installer training time and appeal to homeowners seeking cost-effective solutions.
Inventory Simplification: One kit fits 90% of residential tank sizes, reducing distributor SKUs and inventory costs by 25%.
Local Compliance Support: Provides regional certification documentation (UBC, IPC, AS/NZS 4041), ensuring hassle-free approval for building inspectors.
Sustainability Focus: Manufactured with 70% recycled steel and recyclable packaging, aligning with energy-efficient home certification programs (ENERGY STAR, LEED for Homes).
