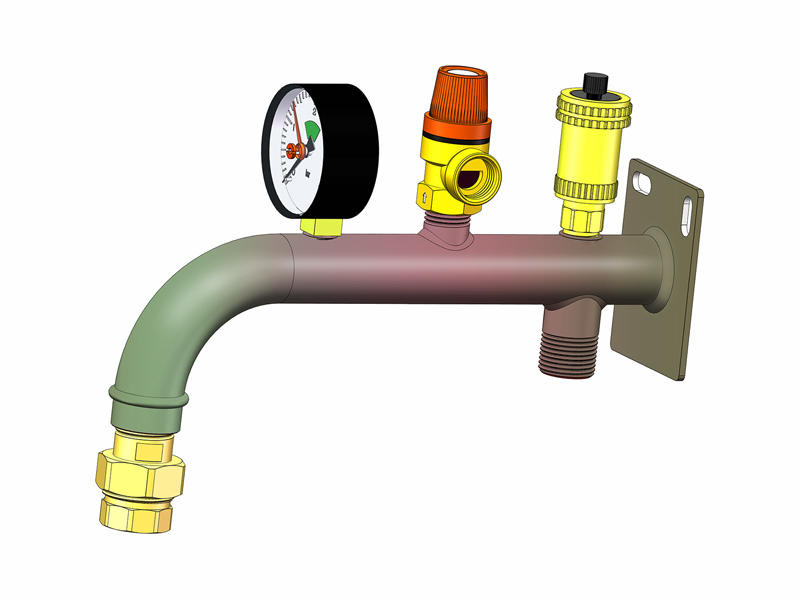

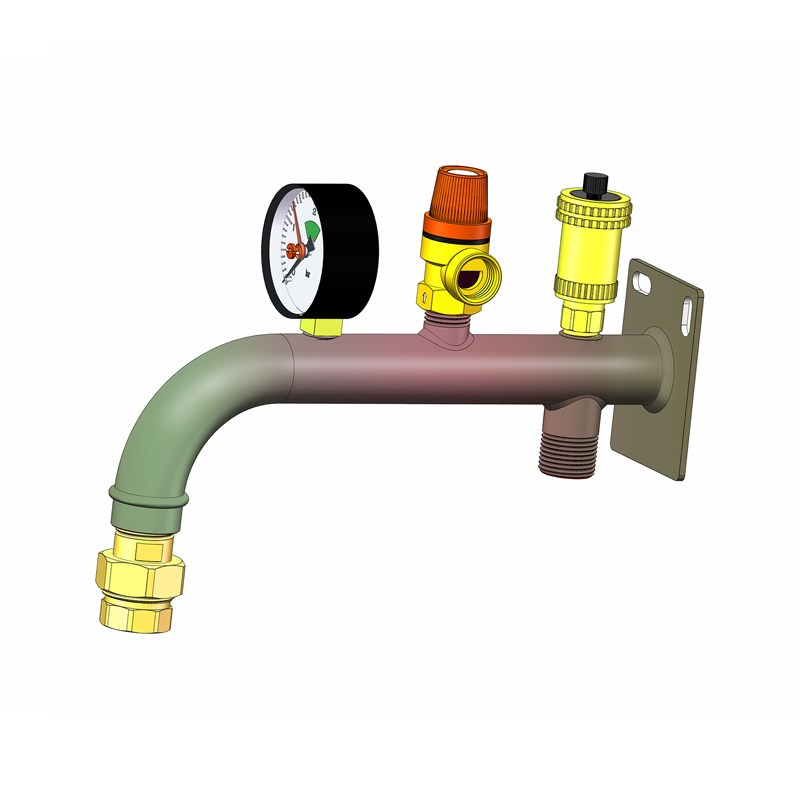

The Bowed Expansion Tank Bracket Kit With Seal Ring Steel D32 is a specialized solution designed for wet and high-humidity environments, ensuring leak-free tank mounting in residential and commercial heating systems. Engineered with a built-in seal ring and corrosion-resistant materials, this kit provides enhanced protection for expansion tanks in challenging conditions.
Leak-Proof Design:
Integral EPDM seal ring (5mm thickness, FDA 21 CFR 177.2600 compliant), creating a watertight seal between bracket and tank, preventing condensation buildup (≤0.1ml/day leakage).

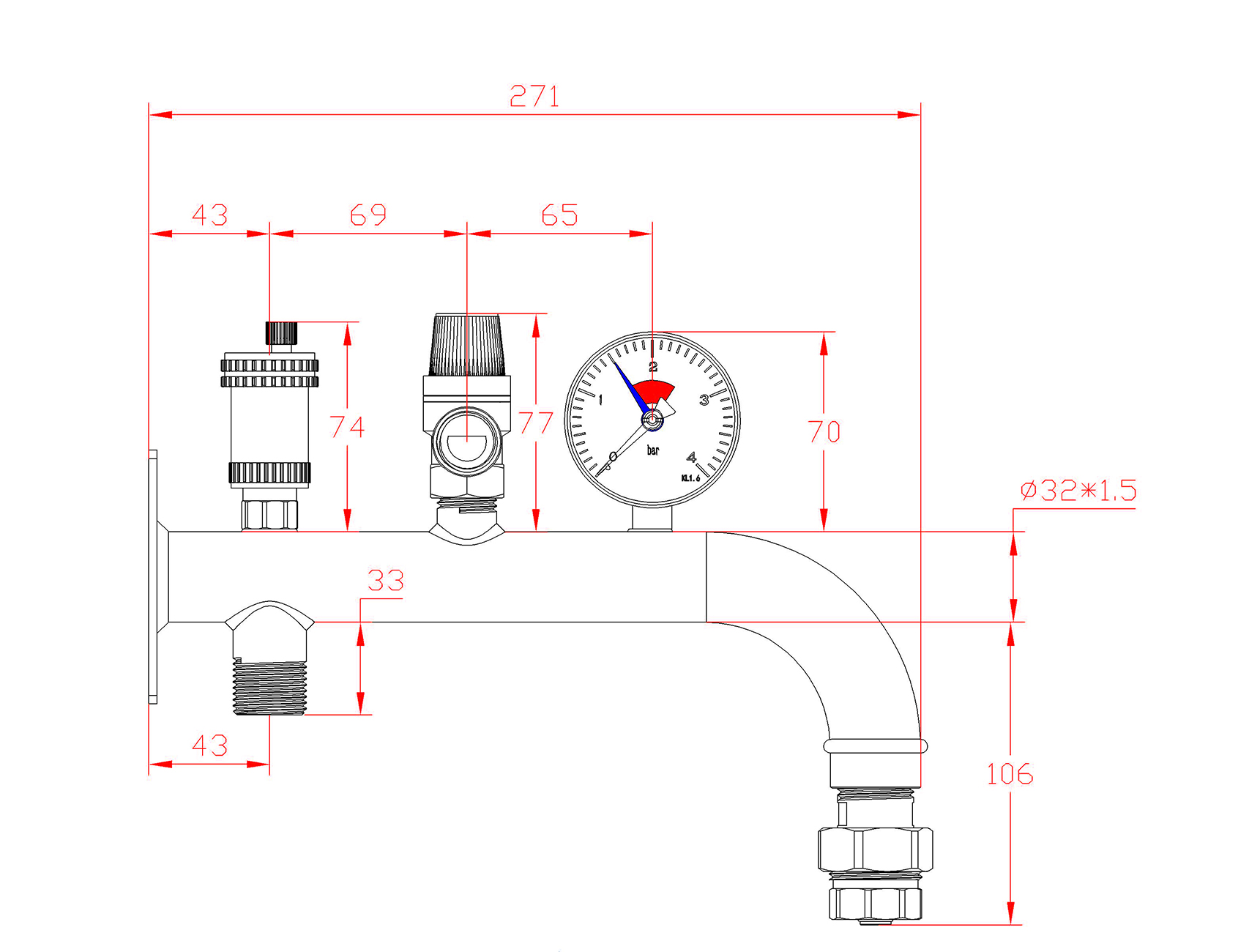

32mm tube compatibility (OD 32mm), suitable for 2-20L tanks, with bowed profile optimizing space in narrow mechanical rooms.
Enhanced Corrosion Protection:
Dual-layer coating: zinc-nickel plating (10μm) + polyurethane topcoat, resisting salt spray (1500 hours, ASTM B117) and chemical exposure (pH 4-10), ideal for pool houses and coastal properties.
Stainless steel mounting hardware (A2-70), eliminating rust in humid environments where standard steel hardware fails.
Vibration & Noise Control:
Molded rubber base (Shore A 70) dampens vibrations (reduction ≥20%) and absorbs mechanical noise (≤45dB), critical for quiet residential installations.
Load capacity: 80kg static, 60kg dynamic, with fatigue testing exceeding 100,000 cycles at 150% load.
Compliance & Safety:
Meets IP64 water protection standards for the seal ring, compliant with EN 60529 and suitable for direct water spray areas (e.g., utility room sinks, laundry rooms).
Clear installation guide with torque specifications (12-15Nm for seal ring compression), ensuring proper sealing during setup.
Suited for wet and corrosive environments, this kit is used in:
Bathroom Heating: Mounts expansion tanks in ensuite boiler closets, protected from shower steam and humidity (RH ≥85%).
Marine & Coastal Homes: Secures tanks in beachfront properties, resisting salt air corrosion (300+ days/year near ocean), with seal ring preventing seawater vapor ingress.
Industrial Laundries: Supports tanks in commercial washing facilities, enduring high humidity and chemical detergents (e.g., hotels, care homes).
Problem-Solving Design: Addresses common issues of rust and leaks in wet environments, reducing service calls by 70% compared to un-sealed brackets.
Material Expertise: EPDM seal ring tested for 10-year lifespan in 85% RH at 60°C, backed by accelerated aging data (ISO 11346).
Customization Options: Offer food-grade seal rings (FDA compliant) for potable water systems, ideal for solar thermal applications with drinkable water tanks.
Global Certification: CE, UL, and AS/NZS 4041 compliant, ensuring suitability for international projects in Australia, New Zealand, and the EU.
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with an individual carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:150pcs to 200pcs.
• Neutral packaging for all products.
