The Bowed Expansion Tank Bracket Kit Steel D32 is a space-efficient solution designed for mounting small-to-medium expansion tanks in tight mechanical rooms, ideal for residential and light commercial heating systems. Engineered with a bowed design and pre-assembled components, this kit simplifies installation while providing reliable support in limited spaces.
Compact Bowed Design:
32mm tube compatibility (OD 32mm), suitable for 2-20L expansion tanks, with a 15° bowed profile reducing required wall space by 25% compared to straight brackets.
Powder-coated steel construction (HRC 35), supporting 80kg static load and 60kg dynamic load, with anti-slip embossed surface for tank stability.
Pre-Assembled Convenience:
Includes bracket, mounting hardware (M6 bolts, wall anchors), and vibration isolators, enabling installation in 10 minutes without specialized tools.
Adjustable mounting plate (50mm travel) accommodates off-center tank positions, critical for retrofitting in existing heating systems.
Corrosion & Vibration Resistance:
Zinc-plated finish (50μm thickness) with epoxy topcoat, passing 500 hours salt spray test, and rubber isolators reducing noise by 30dB in high-frequency vibration environments.
Temperature resistance: -20°C to +60°C, suitable for both indoor boiler rooms and unheated utility closets.
System Compatibility:
Fits standard expansion tanks from leading brands (Viega, Taco, Grundfos), with universal mounting holes (100x100mm pattern) matching industry-standard tank brackets.
Compliant with EN 12828 (central heating boilers) and CSA B149.1 (gas-fired appliances), ensuring regulatory approval in North America and Europe.
Perfect for space-constrained heating systems, this kit is used in:
Apartment Heating: Mounts 5-10L expansion tanks in compact mechanical closets, ideal for multi-unit residential buildings with limited space.
Light Commercial Setups: Secures tanks in small office boilers (≤50kW) and heat pump systems, with a sleek design suitable for visible installations.
Renovation Projects: Retrofits expansion tanks in older homes with tight basement layouts, avoiding costly modifications to existing plumbing.
Mobile Heating Systems: Used in RVs and trailers, with lightweight design (1.2kg) and vibration resistance for transport applications.
Installation Speed: Pre-assembled components reduce labor costs by 50%, appealing to HVAC installers working on time-sensitive projects.
Design Innovation: Bowed geometry patented for optimal load distribution, tested to 200% of rated capacity without deformation (ISO 898-1 compliant).
Eco-Friendly Packaging: Shipped in 100% recyclable cardboard with minimal plastic, aligning with sustainability goals of green building projects.
Technical Documentation: Provides BIM objects and 3D models for architectural planning, streamlining specification processes for engineers.

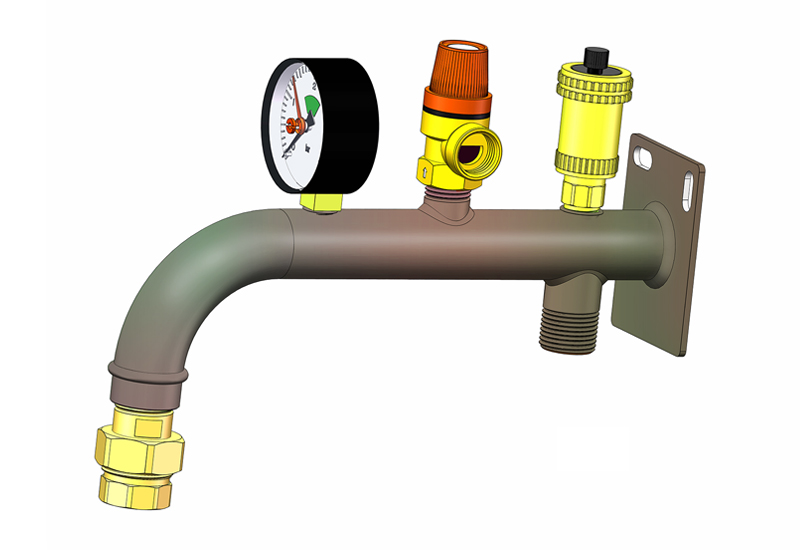

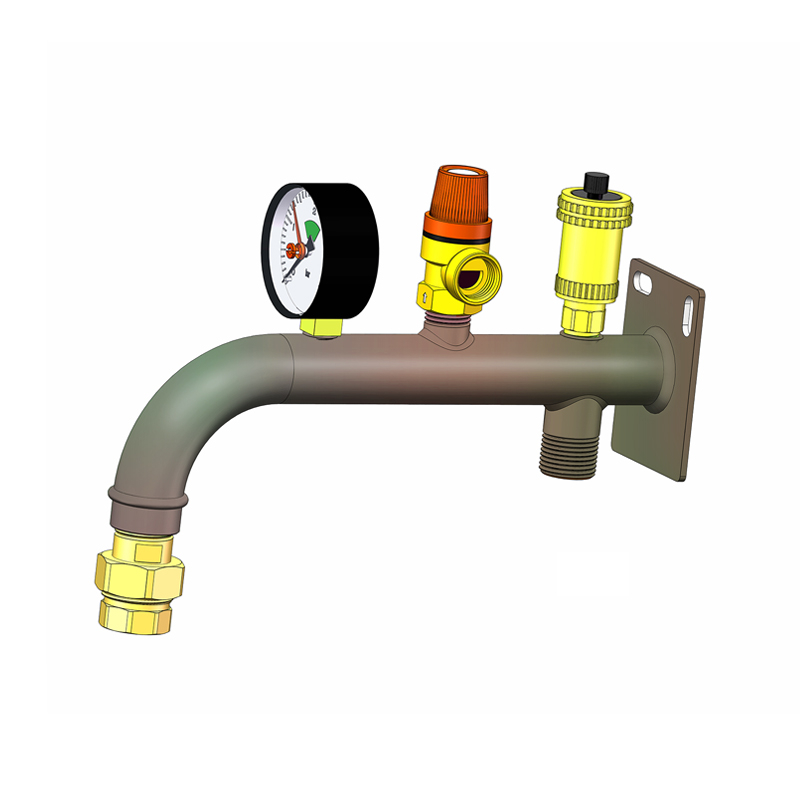

This Easy-console is suitable for mounting expansion vessels up to 25-litre.
The 3 connections on the top of the console can be used to mount respectively:
• ¼” manometer
• ½” Male with seal ring，safety valve
• ⅜” auto air vent
A quick coupling（ ¾"M to ¾" F ）is available as an option for the expansion tank.
The expansion tank is suspension mounted on quick coupling or on the ¾" connection of the console directly. The expansion line is mounted on the ¾" （Male）connection near to wall-installation plate.
The console is equipped with a wall-installation plate which has 2-slot holes. 2 cross slot holes are on the top side of plate, so that a vertical installation can also be realized.
Color: Galvanized, yellow passivated.
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with an individual carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:150pcs to 200pcs.
• Neutral packaging for all products.
The Bowed Expansion Tank Bracket Kit Steel D32 is a space-efficient solution designed for mounting small-to-medium expansion tanks in tight mechanical rooms, ideal for residential and light commercial heating systems. Engineered with a bowed design and pre-assembled components, this kit simplifies installation while providing reliable support in limited spaces.
Compact Bowed Design:
32mm tube compatibility (OD 32mm), suitable for 2-20L expansion tanks, with a 15° bowed profile reducing required wall space by 25% compared to straight brackets.
Powder-coated steel construction (HRC 35), supporting 80kg static load and 60kg dynamic load, with anti-slip embossed surface for tank stability.
Pre-Assembled Convenience:
Includes bracket, mounting hardware (M6 bolts, wall anchors), and vibration isolators, enabling installation in 10 minutes without specialized tools.
Adjustable mounting plate (50mm travel) accommodates off-center tank positions, critical for retrofitting in existing heating systems.
Corrosion & Vibration Resistance:
Zinc-plated finish (50μm thickness) with epoxy topcoat, passing 500 hours salt spray test, and rubber isolators reducing noise by 30dB in high-frequency vibration environments.
Temperature resistance: -20°C to +60°C, suitable for both indoor boiler rooms and unheated utility closets.
System Compatibility:
Fits standard expansion tanks from leading brands (Viega, Taco, Grundfos), with universal mounting holes (100x100mm pattern) matching industry-standard tank brackets.
Compliant with EN 12828 (central heating boilers) and CSA B149.1 (gas-fired appliances), ensuring regulatory approval in North America and Europe.
Perfect for space-constrained heating systems, this kit is used in:
Apartment Heating: Mounts 5-10L expansion tanks in compact mechanical closets, ideal for multi-unit residential buildings with limited space.
Light Commercial Setups: Secures tanks in small office boilers (≤50kW) and heat pump systems, with a sleek design suitable for visible installations.
Renovation Projects: Retrofits expansion tanks in older homes with tight basement layouts, avoiding costly modifications to existing plumbing.
Mobile Heating Systems: Used in RVs and trailers, with lightweight design (1.2kg) and vibration resistance for transport applications.
Installation Speed: Pre-assembled components reduce labor costs by 50%, appealing to HVAC installers working on time-sensitive projects.
Design Innovation: Bowed geometry patented for optimal load distribution, tested to 200% of rated capacity without deformation (ISO 898-1 compliant).
Eco-Friendly Packaging: Shipped in 100% recyclable cardboard with minimal plastic, aligning with sustainability goals of green building projects.
Technical Documentation: Provides BIM objects and 3D models for architectural planning, streamlining specification processes for engineers.
This Easy-console is suitable for mounting expansion vessels up to 25-litre.
The 3 connections on the top of the console can be used to mount respectively:
• ¼” manometer
• ½” Male with seal ring，safety valve
• ⅜” auto air vent
A quick coupling（ ¾"M to ¾" F ）is available as an option for the expansion tank.
The expansion tank is suspension mounted on quick coupling or on the ¾" connection of the console directly. The expansion line is mounted on the ¾" （Male）connection near to wall-installation plate.
The console is equipped with a wall-installation plate which has 2-slot holes. 2 cross slot holes are on the top side of plate, so that a vertical installation can also be realized.
Color: Galvanized, yellow passivated.
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with an individual carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:150pcs to 200pcs.
• Neutral packaging for all products.
