Round Expansion Tank Bracket Kit (Steel D42)

Round Expansion Tank Bracket (Steel D42)

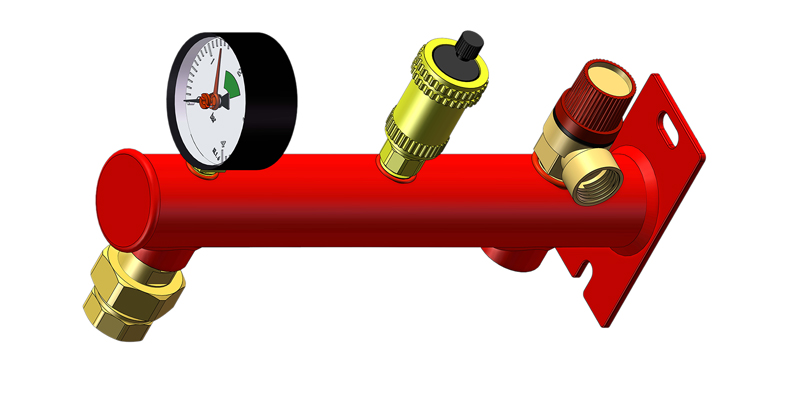

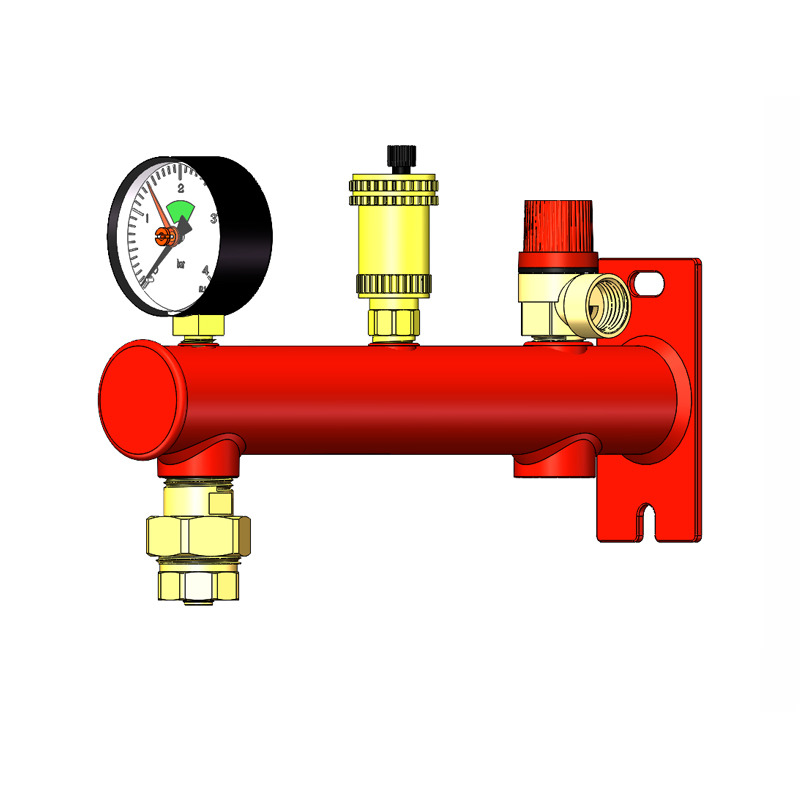

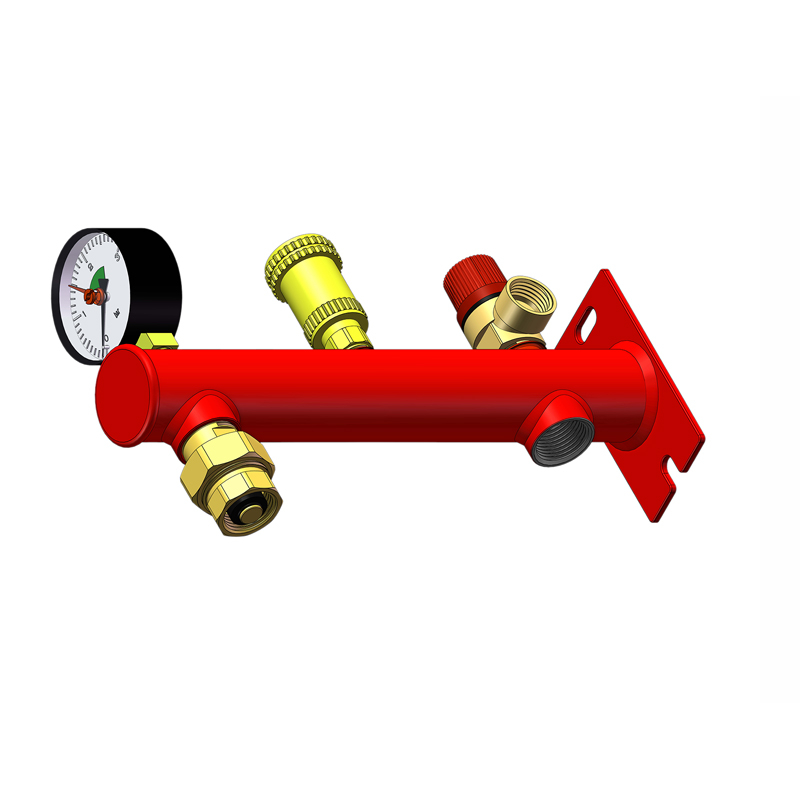

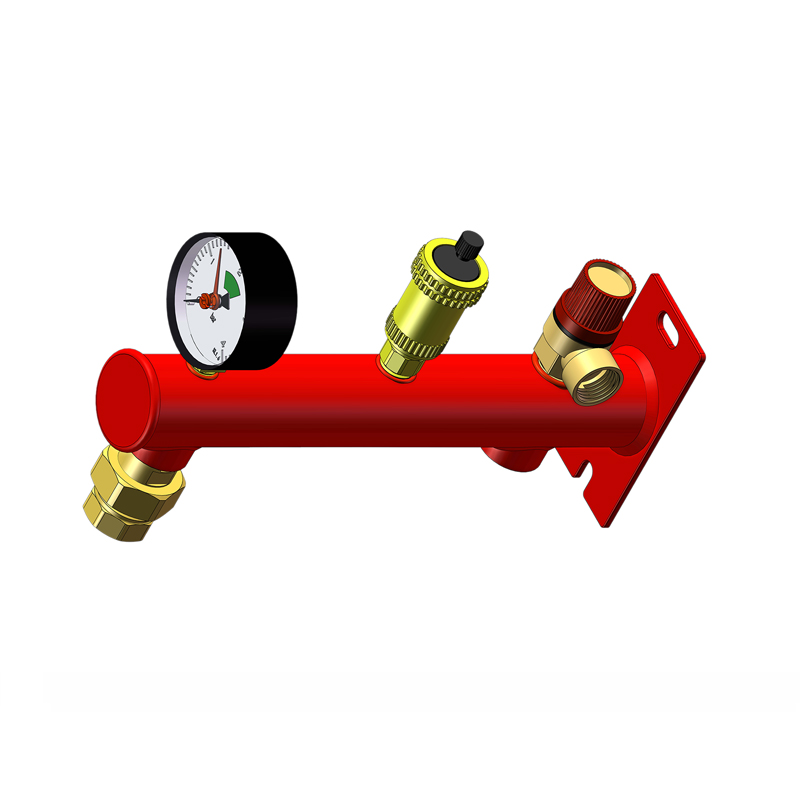

This Easy-console is suitable for mounting expansion vessels up to 25-litre.

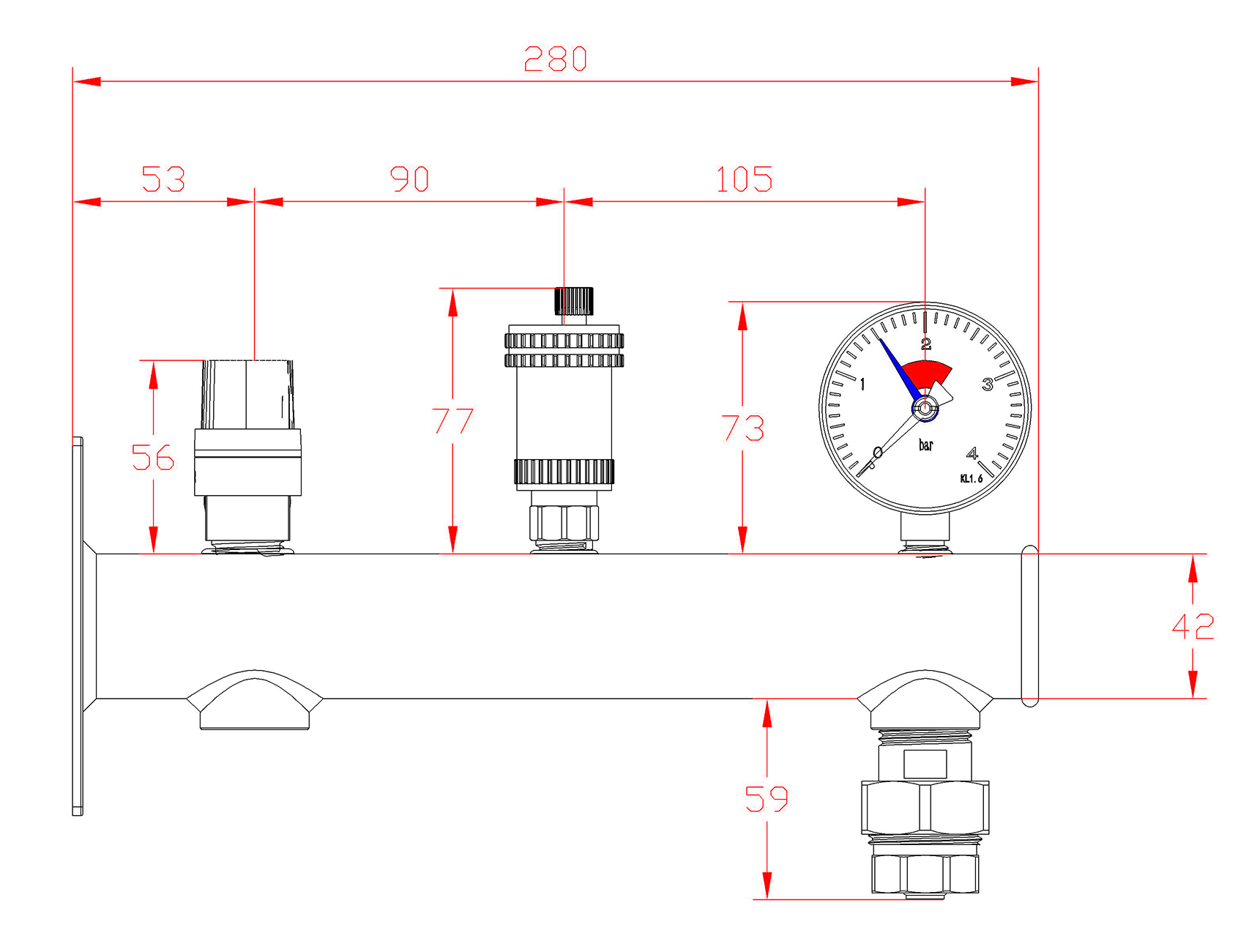

The 3 connections on the top of the console can be used to mount respectively:

•  ¼” manometer

•  ⅜” auto air vent

•  ½” safety valve

A quick coupling（ ¾"M to ¾" F ）is available as an option for the expansion tank.

The expansion tank is suspension mounted on quick coupling or on the ¾" connection of the console directly. The expansion line is mounted on the ¾" connection near to wall-installation plate.

The console is equipped with a wall-installation plate which has 2-slot holes. 2 cross slot holes are on the top side of plate, so that a vertical installation can also be realized.

Color: Red (RAL 3013 or RAL 3020)

Packing details

Option one: (Plywood)

• Packing: each product with a bubble bag, then bulk- packed in plywood box.

• Box size:1200mm (length)*800mm (width)*1100mm (Height).

• Quantity:800pcs to 1000pcs.

• Neutral packaging for all products.

Option two: (Carton)

• Packing: each product with a bubble bag, then bulk- packed in carton; all cartons put on the plywood pallet.

• Pallet size:1200mm (length)*800mm (width).

• Quantity:150pcs to 200pcs.

• Neutral packaging for all products.
