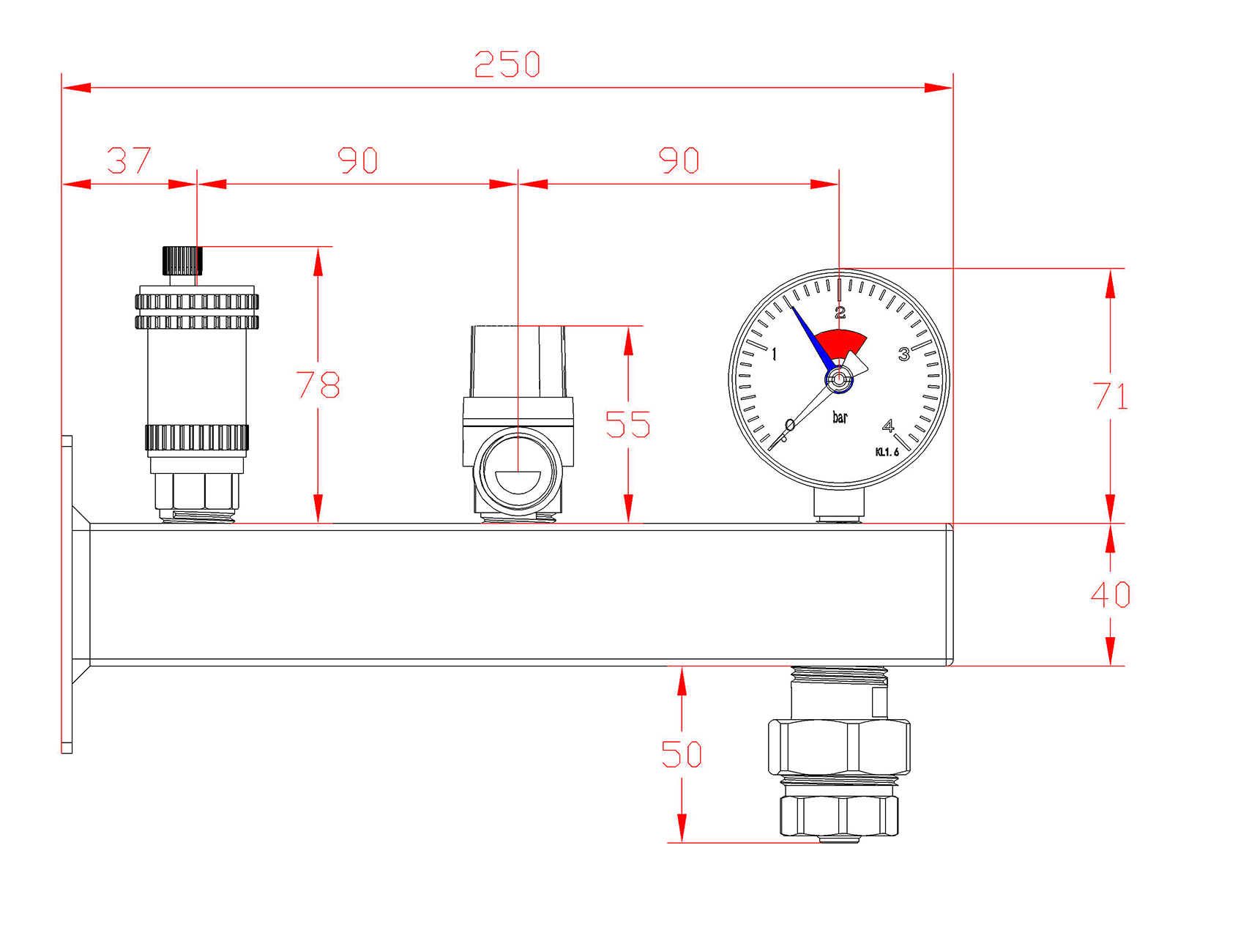

Square Expansion Tank Bracket (Stainless Steel 40*40)
This Easy-console is suitable for mounting expansion vessels up to 18-litre.

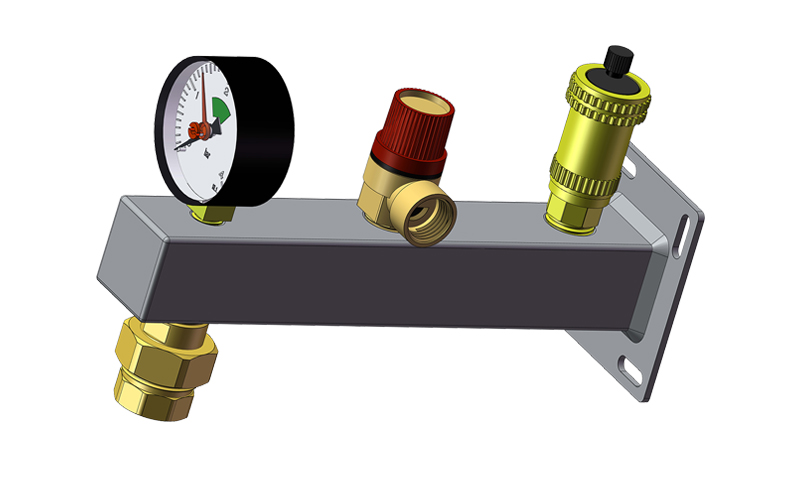

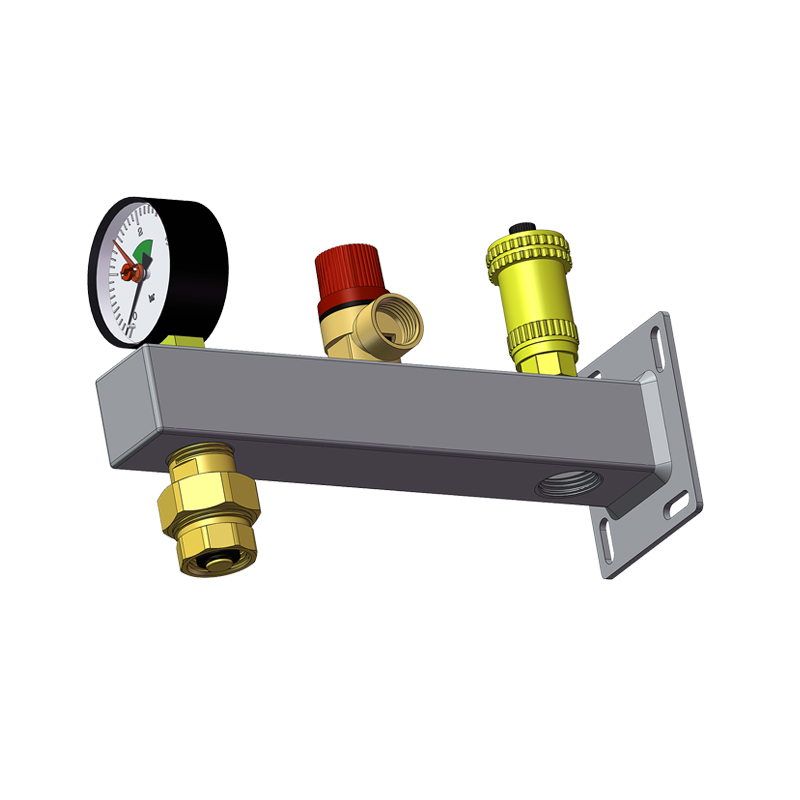

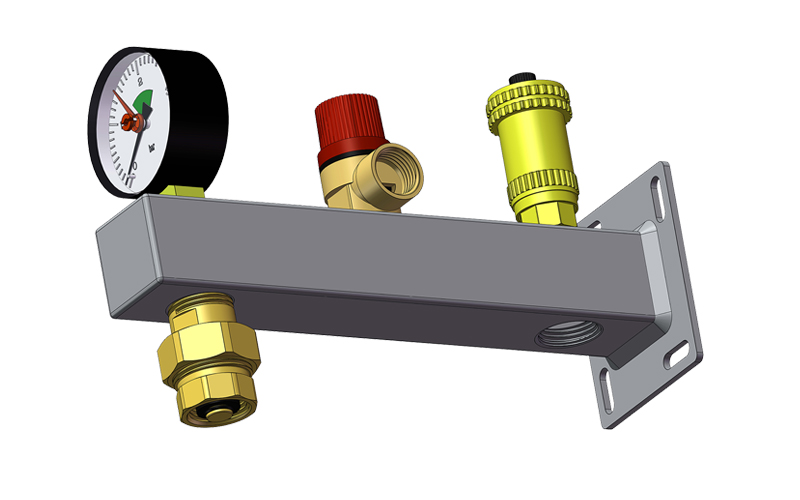

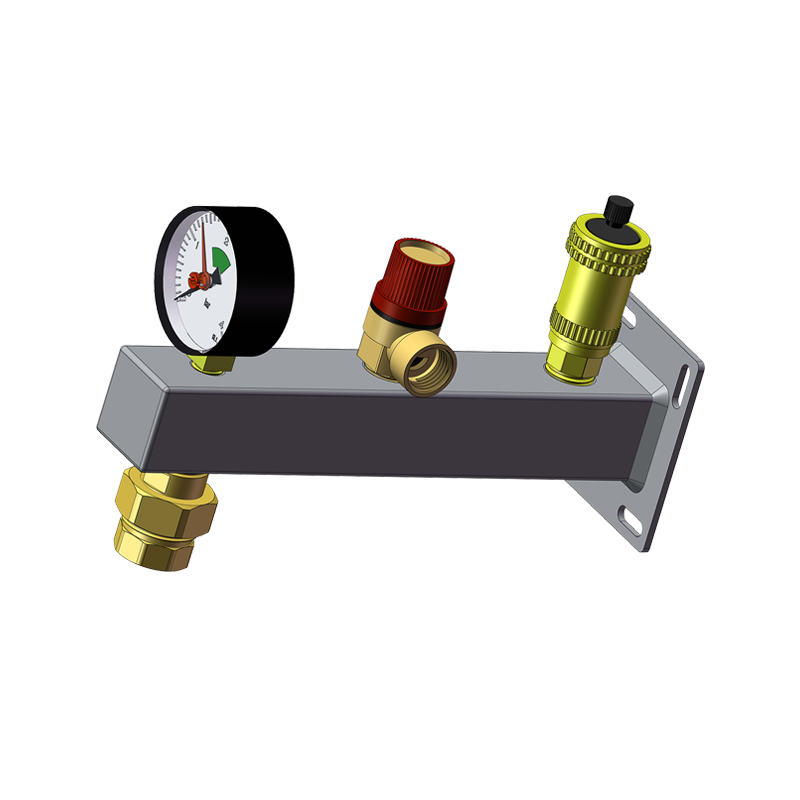

The 3 connections on the top of the console can be used to mount respectively:
• ¼” manometer
• ½” safety valve
• ½” auto air vent
A quick coupling（ ¾"M to ¾" F ）is available as an option for the expansion tank.
The expansion tank is suspension mounted on quick coupling or on the ¾" connection of the console directly. The expansion line is mounted on the ¾" connection near to wall-installation plate.
The console is equipped with a wall-installation plate which has 4-slot holes. 2 cross slot holes are located at the bottom, so that pre-installation of a wall bolt is possible. The rest 2 cross-slot holes are located at the top, so that a vertical installation can also be realized.
Color: Polished or Brushed
Packing details
Option one: (Plywood)
• Packing: each product with a bubble bag, then bulk- packed in plywood box.
• Box size:1200mm (length)*800mm (width)*1100mm (Height).
• Quantity:800pcs to 1000pcs.
• Neutral packaging for all products. .
Option two: (Carton)
• Packing: each product with an individual carton; all cartons put on the plywood pallet.
• Pallet size:1200mm (length)*800mm (width).
• Quantity:150pcs to 200pcs.
• Neutral packaging for all products.
