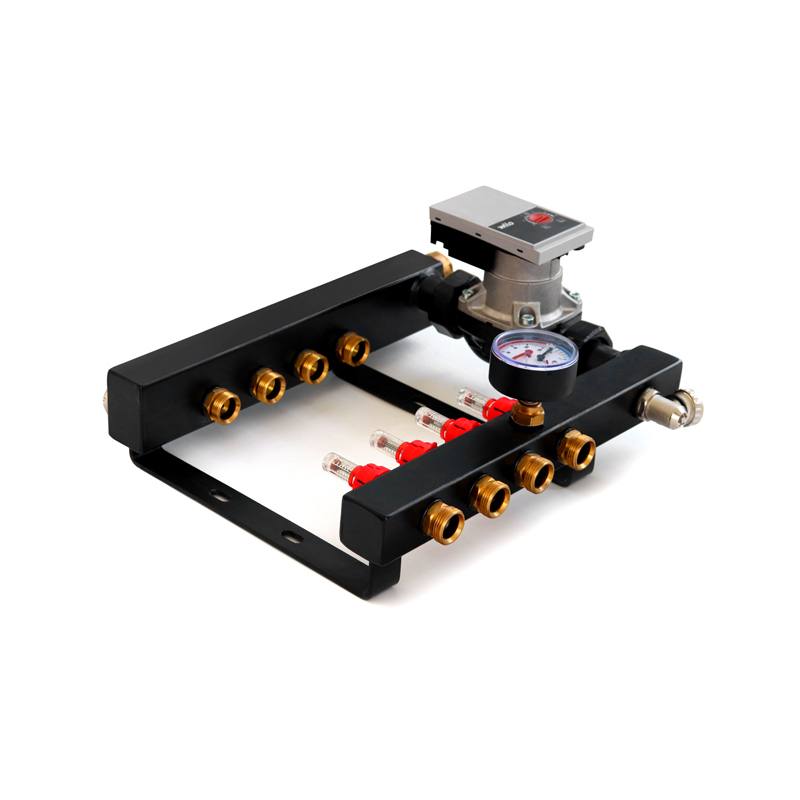

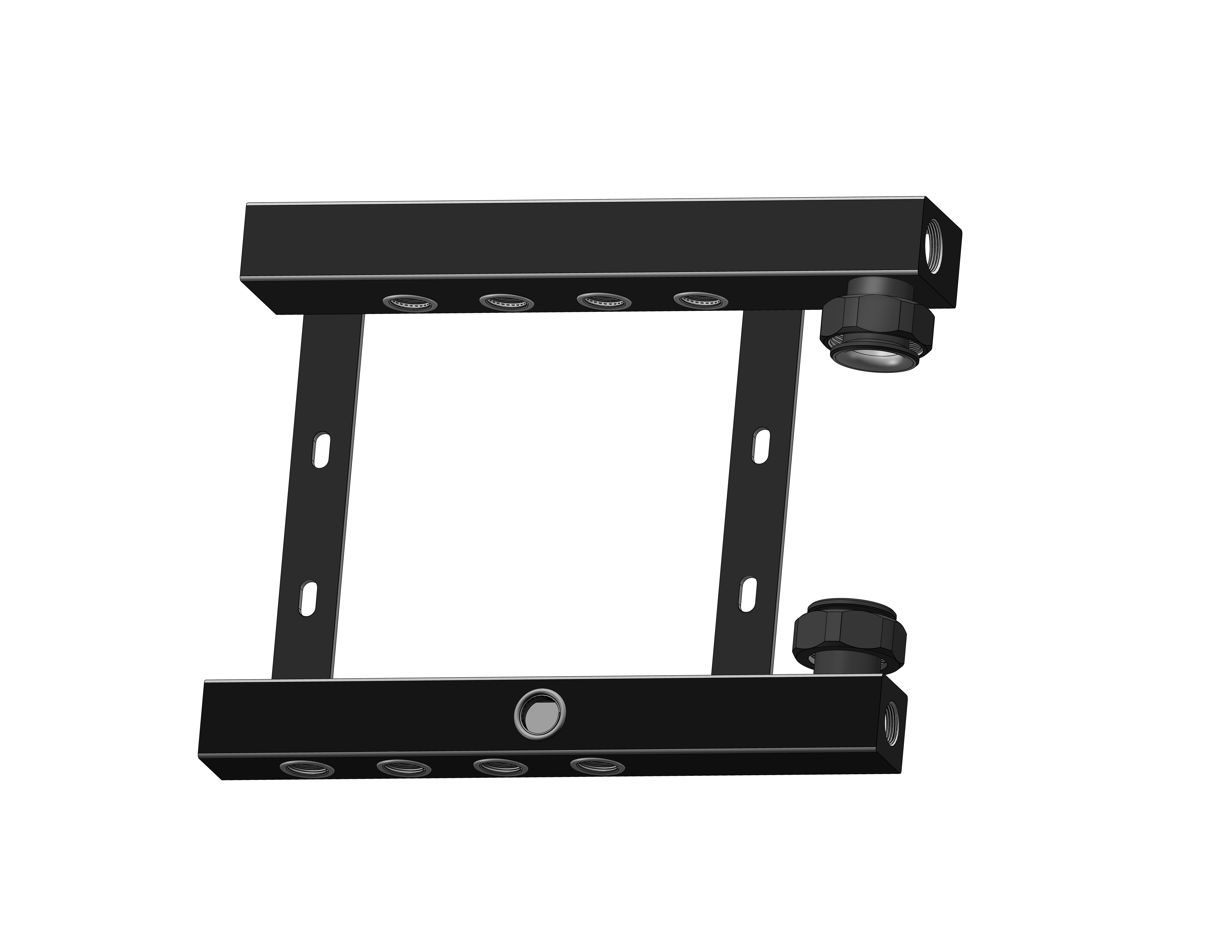

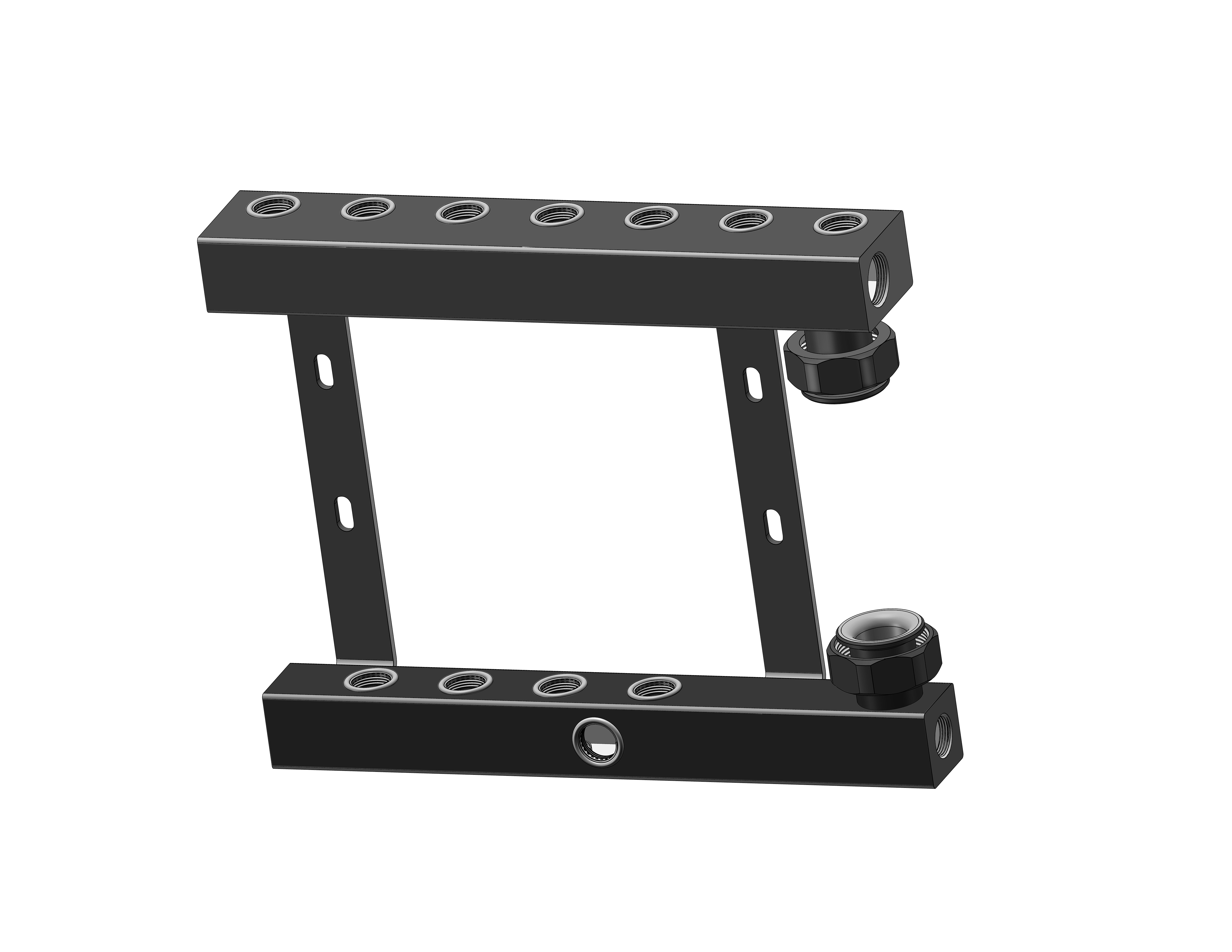

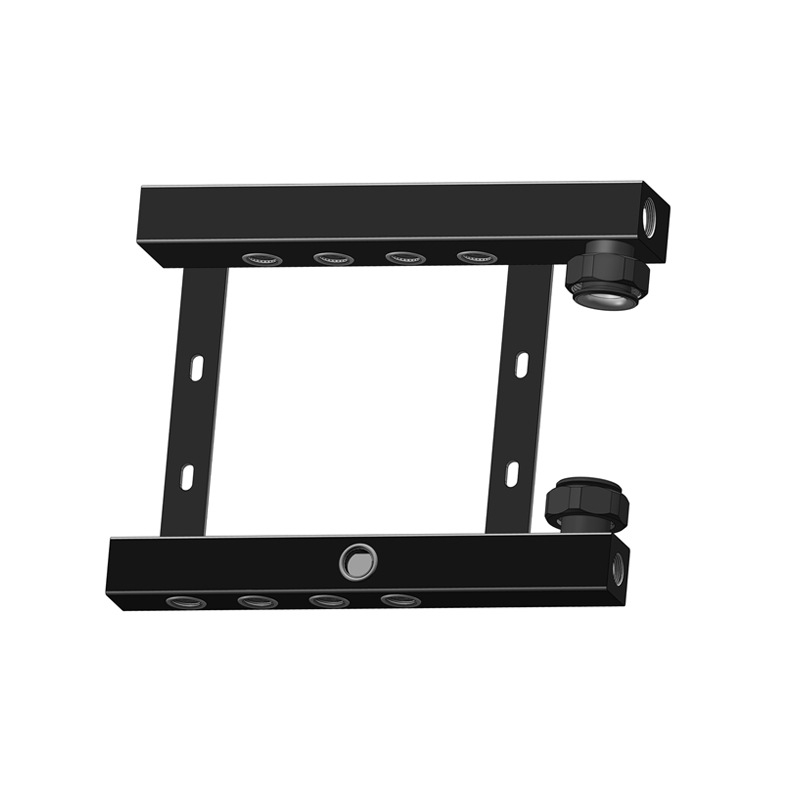

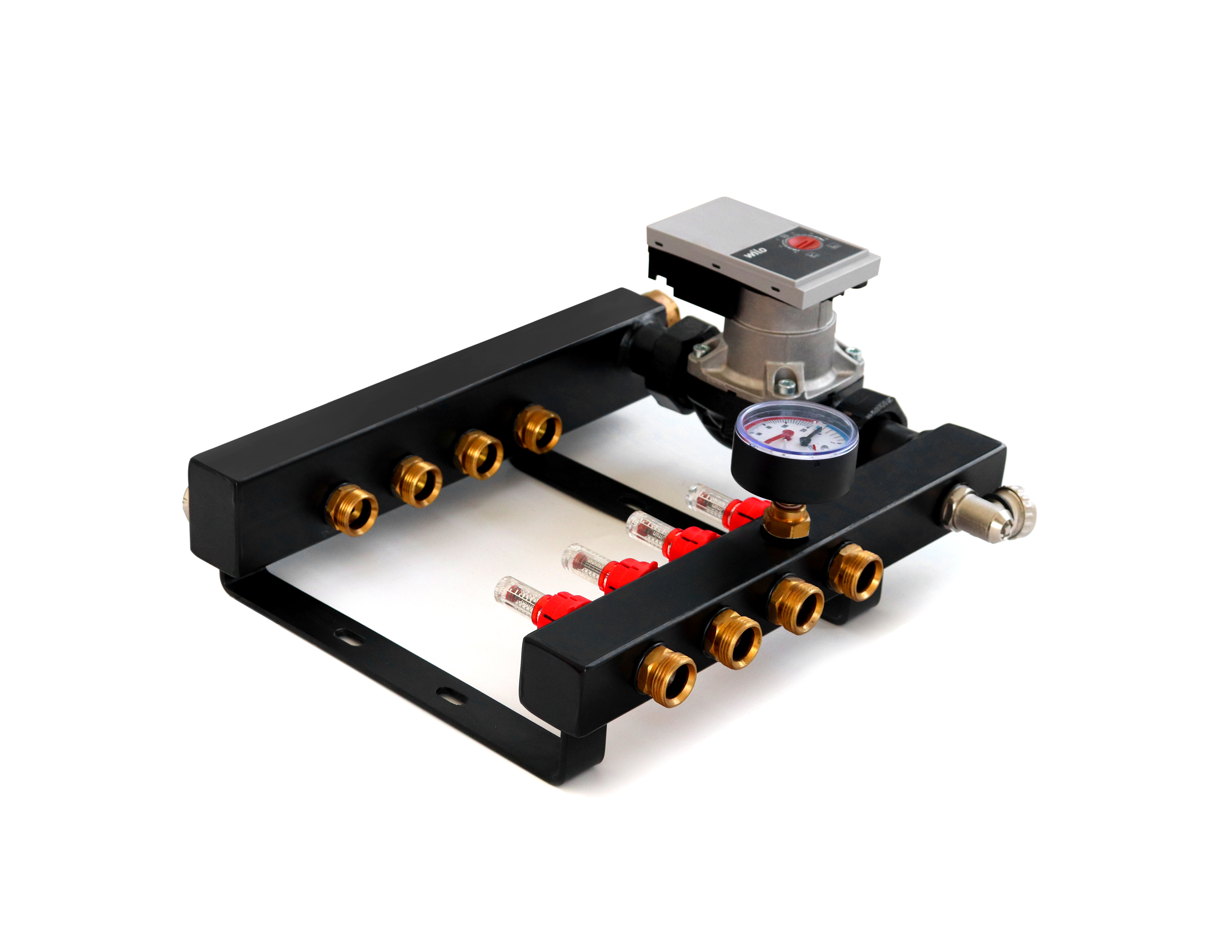

The Inline Manifold is a versatile solution designed for seamless integration into hydronic systems, enabling efficient fluid distribution and flow control in residential, commercial, and industrial applications. Engineered with a compact inline design and durable steel construction, this manifold ensures minimal pressure drop and easy maintenance, ideal for retrofitting existing systems or building new hydronic setups.
Streamlined Inline Design:
Seamless steel construction (40×40×2mm) with 2 supply + 2 return ports (DN20-DN25, NPT threads), supporting working pressure up to 8 bar and fluid temperature 100°C.
Straight-through flow path reduces pressure drop by 20% compared to angled manifolds, ensuring efficient fluid distribution (flow capacity 15-60 L/min).
Precision Control Functionality:
Manual balancing valves (30-100% flow regulation) with quarter-turn handles for easy zone adjustment, plus an integrated air vent (1/4" NPT) to eliminate air locks.
Smooth internal surface (Ra≤1.6μm) minimizes mineral buildup, reducing maintenance frequency by 30% in hard water areas.
Easy Installation & Maintenance:
Inline mounting (no separate frame required) fits directly into pipe runs, saving 40% space compared to traditional manifold systems.
Removable end caps allow easy access for flushing and inspection, with labeled ports (supply/return) to prevent installation errors.
Durability & Compliance:
Epoxy powder coating (100μm, RAL 9006) for corrosion resistance in residential environments, with galvanized internal surface compliant with EN 1264-3 and ASME B16.3.
Lightweight (2.5kg) and compatible with PEX, copper, and steel pipes, supporting both new installations and system retrofits.
Suited for diverse hydronic setups, this manifold is used in:
Residential Hydronic Heating: Distributes heat to 2-4 zones in single-family homes, ideal for radiant floor heating and radiator systems.
Commercial Retrofits: Integrates into existing boiler systems in offices and retail stores, offering cost-effective zone control without major modifications.
Industrial Process Cooling: Manages fluid flow in small-scale industrial cooling systems, with corrosion-resistant finish suitable for non-corrosive environments.
Renewable Energy Systems: Connects solar thermal collectors and heat pumps, ensuring balanced flow in hybrid hydronic setups.
Space-Saving Innovation: Inline design eliminates the need for dedicated mounting frames, making it ideal for tight mechanical spaces and retrofit projects.
Installation Speed: Direct pipe integration reduces setup time by 50% compared to traditional manifolds, appealing to time-sensitive contractors.
Cost-Effective Performance: 25% more affordable than equivalent modular manifolds while delivering essential flow control features.
Universal Compatibility: Works with all common pipe types and heating systems, providing a flexible solution for diverse hydronic applications.
